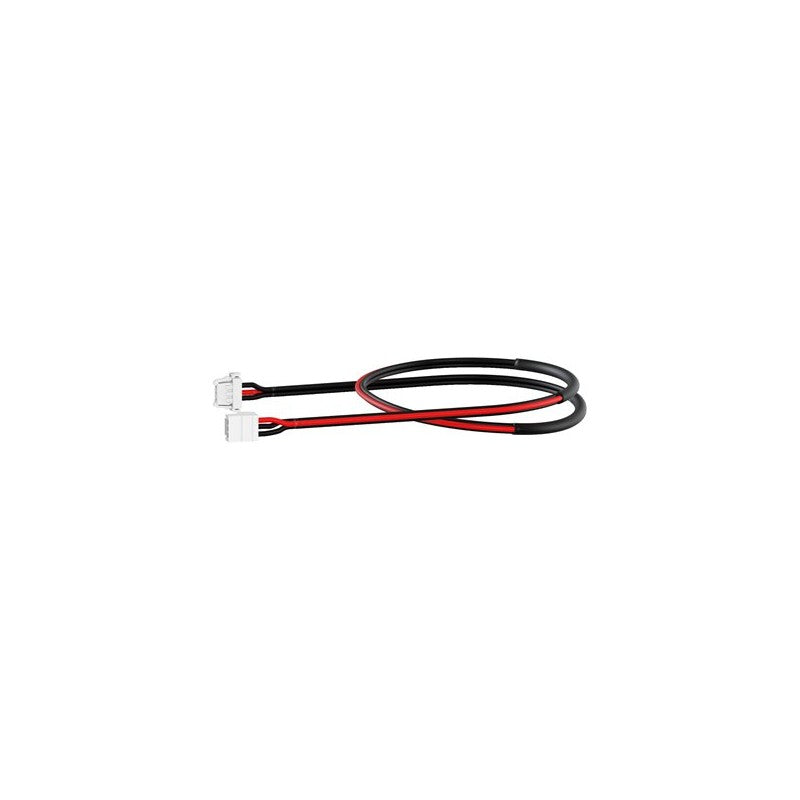

This internal communication wiring accessory is designed for the Schneider Electric Masterpact MTZ1 circuit breaker series, specifically for use with the XF-MX release mechanism. It facilitates the internal communication pathways required for the proper functioning of the release system within the Masterpact MTZ1 frame size.

Technical details

• Manufacturer Series: Masterpact MTZ1
• Accessory Type: Internal Communication Wiring
• Compatible Release: XF-MX
• Function: Facilitates internal communication for release mechanism
• System Integration: Designed for Masterpact MTZ1 circuit breakers
• Component Role: Essential for proper operation of the XF-MX release
• Wiring Configuration: Specific internal wiring harness

Applications & compatibility

This wiring harness is critical for the correct installation and operation of the XF-MX release unit within Schneider Electric's Masterpact MTZ1 air circuit breakers. It ensures reliable communication between the release mechanism and the breaker's control system, commonly found in medium-voltage power distribution applications across various industrial sectors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV833118 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
