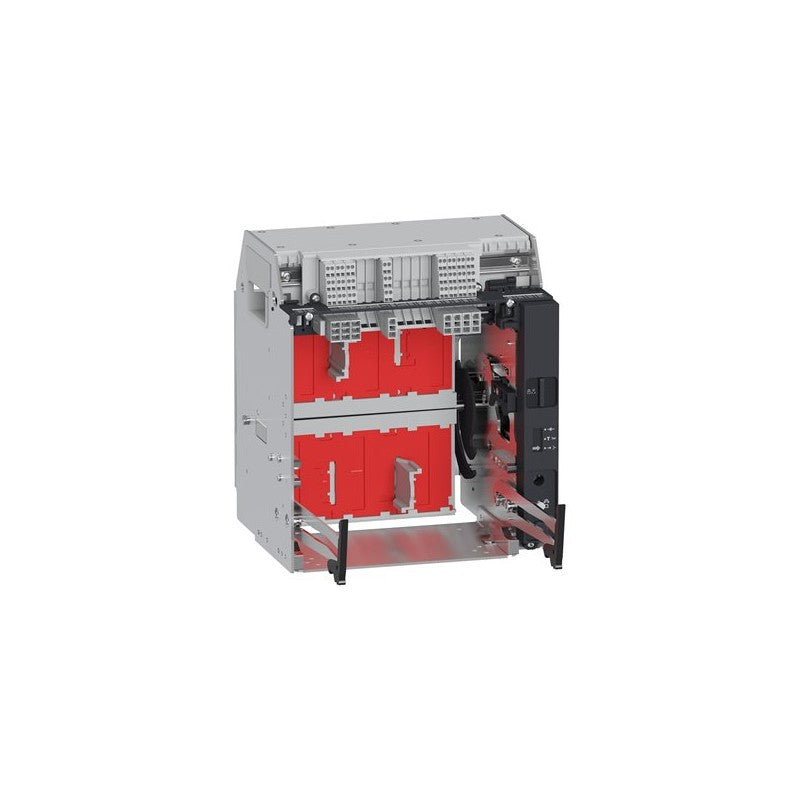

Designed for high-capacity power distribution, the Schneider Electric LV833722 is a chassis component for the Masterpact MTZ1 circuit breaker series. This specific chassis supports MTZ1 02/06-12 frame sizes and is rated for 1250 Amperes in a 3-pole configuration. It serves as a foundational element for building robust and reliable electrical protection systems.

Technical details

• Series: Masterpact MTZ1
• Chassis Type: Circuit Breaker Chassis
• Frame Size Compatibility: MTZ1 02/06-12
• Current Rating: 1250 A
• Number of Poles: 3-Pole
• Configuration: H1/H2/H3
• Component Function: Structural support and mounting for Masterpact MTZ1 circuit breakers.
• Voltage Class: Please verify specific voltage ratings against the manufacturer's datasheet for your application.

Applications & compatibility

This chassis is integral to the installation and operation of Schneider Electric Masterpact MTZ1 air circuit breakers. It is commonly found in main switchboards, distribution panels, and motor control centers within industrial facilities, commercial buildings, and data centers requiring high-performance circuit protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV833722 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
