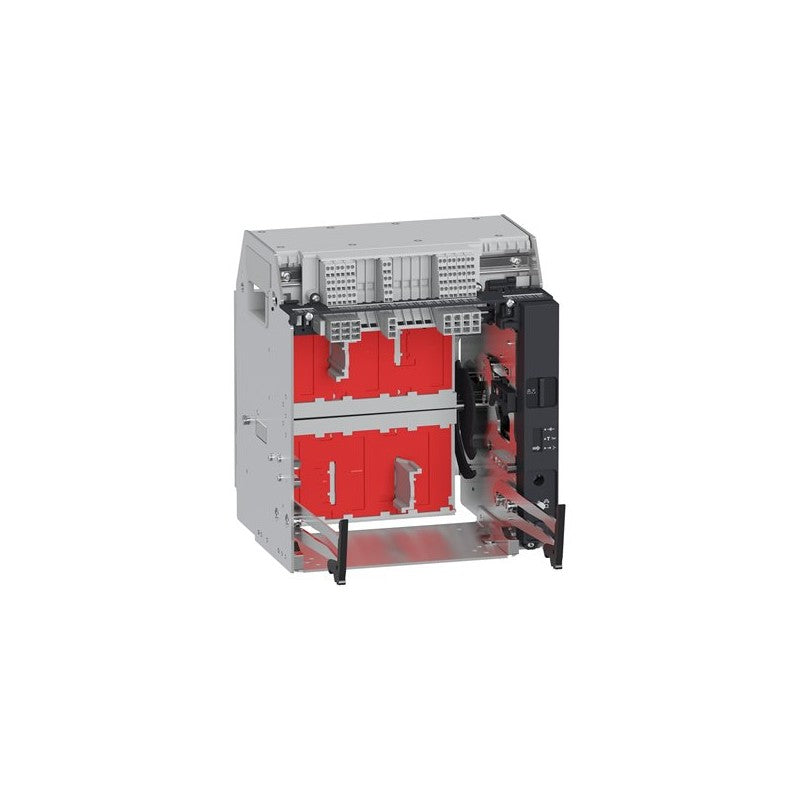

This Schneider Electric chassis is designed for the Masterpact MTZ1 series of air circuit breakers. Specifically, it is configured for models rated up to 1600 Amperes and features a 3-pole configuration. The designation "H1/H2/H3" and "06/10 L1" within the product title indicate specific internal configurations and ratings relevant to the Masterpact MTZ1 platform, suggesting compatibility with various trip unit types and frame sizes within that range.

Technical details

• Series: Masterpact MTZ1
• Product Type: Air Circuit Breaker Chassis
• Current Rating: 1600 A
• Poles: 3-Pole
• Configuration Indicators: H1/H2/H3, 06/10 L1
• Compatible Trip Units: Designed to house specific Masterpact MTZ1 trip units (verify compatibility with manufacturer datasheet)
• Mounting Type: Fixed (typical for this chassis type, verify with datasheet)
• Enclosure Type: Chassis for integration into switchgear assemblies

Applications & compatibility

This chassis is integral to the construction of Masterpact MTZ1 air circuit breakers, commonly deployed in medium-voltage distribution systems. Applications include main incomers, feeder protection, and motor control circuits within industrial facilities, commercial buildings, and power generation plants. It provides the structural foundation for the breaker's internal components and ensures proper mounting within switchgear panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV883723 chassis or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
