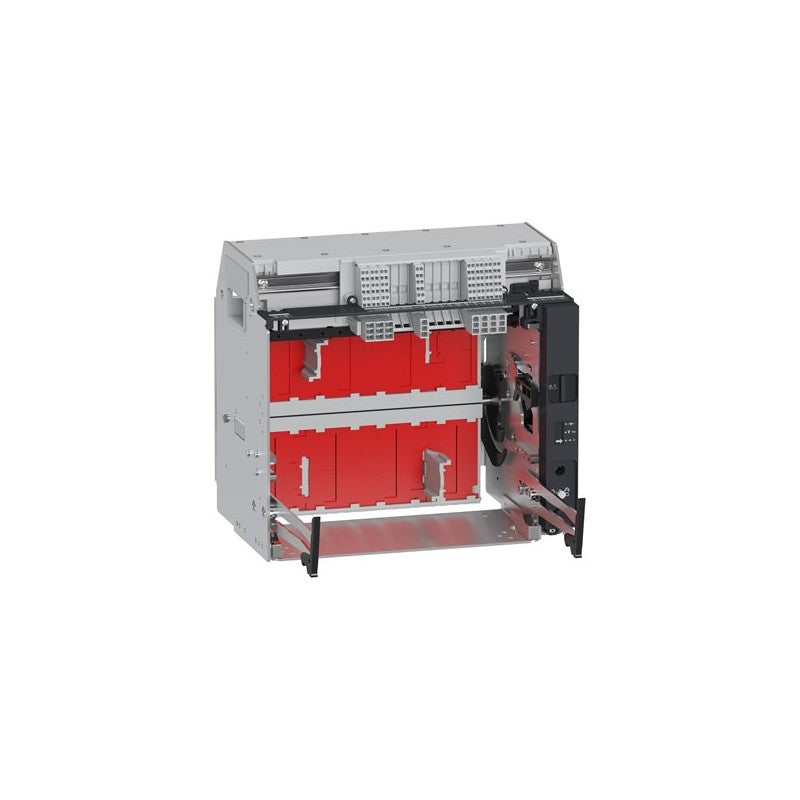

This Schneider Electric chassis is designed for the Masterpact MTZ1 series of air circuit breakers. It specifically supports models rated for 1250 Amperes and features a 4-pole configuration. This component serves as the foundational structure for integrating the breaker into larger electrical distribution systems.

Technical details

• Series: Masterpact MTZ1
• Configuration: 4-Pole (4P)
• Current Rating: 1250 A
• Chassis Type: Fixed, Draw-out compatible (verify mounting details against manufacturer datasheet)
• Compatible Breaker Sizes: MTZ1 06-12
• Mounting Type: Panel mount (verify mounting hole pattern against manufacturer datasheet)
• Enclosure Compatibility: Designed for integration within specific Masterpact MTZ1 switchgear assemblies.
• Terminal Type: Screw or lug terminals (verify specific terminal type against manufacturer datasheet)

Applications & compatibility

This chassis is essential for building and maintaining electrical distribution panels and switchgear assemblies utilizing Schneider Electric's Masterpact MTZ1 circuit breakers. It is commonly found in heavy industrial facilities, commercial buildings, and data centers requiring robust and reliable power protection and distribution.
