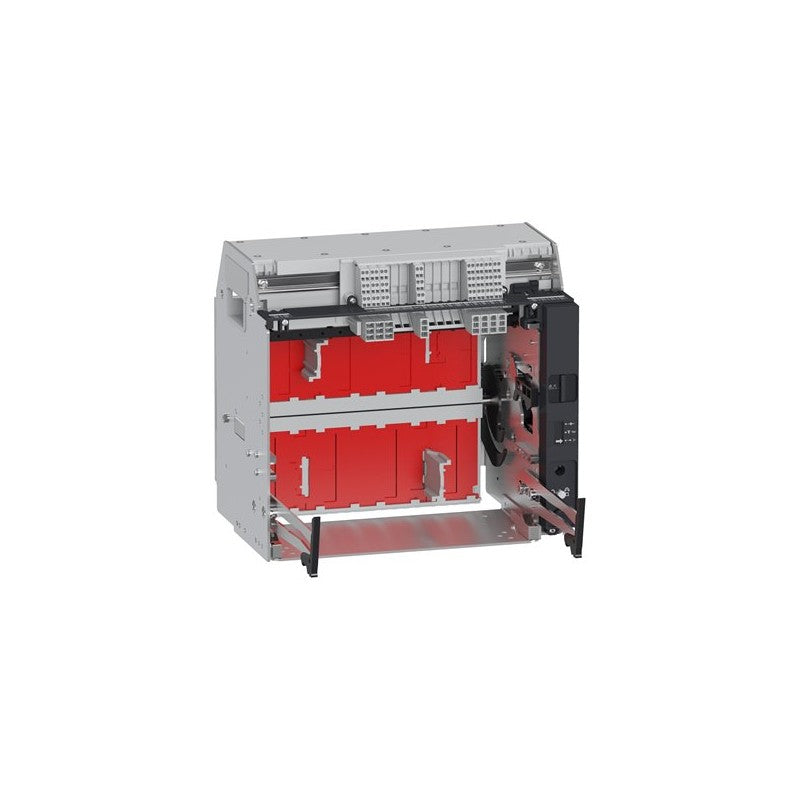

This Schneider Electric chassis is designed for the Masterpact MTZ1 series of air circuit breakers. Specifically, it supports models designated as MTZ1 16 H1, H2, or H3, and is rated for a maximum current of 1600 Amperes. The chassis accommodates 4-pole configurations, providing a robust foundation for high-capacity power distribution and protection systems.

Technical details

• Series: Masterpact MTZ1
• Chassis Type: Fixed
• Pole Configuration: 4-Pole
• Rated Current: 1600 A
• Compatible Breaker Types: MTZ1 16 H1, MTZ1 16 H2, MTZ1 16 H3
• Mounting: Designed for integration within electrical switchgear assemblies.
• Construction: Robust metal frame engineered for durability in industrial environments.

Applications & compatibility

This chassis is integral to the installation of Masterpact MTZ1 air circuit breakers in medium-voltage switchgear. It is commonly found in power distribution panels for industrial facilities, commercial buildings, data centers, and utility substations where reliable and high-capacity circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV883726 chassis or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
