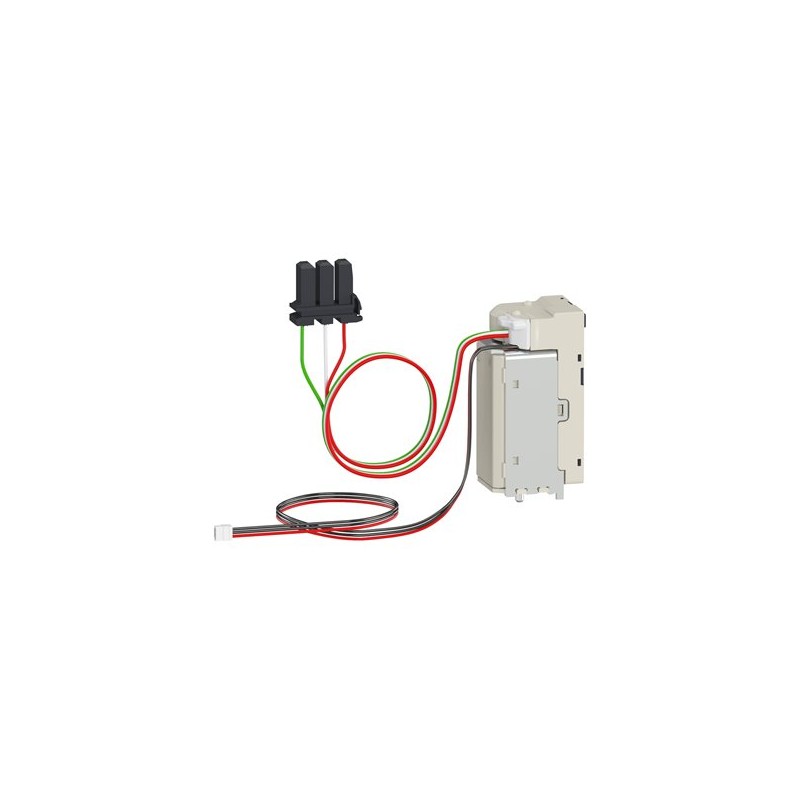

The Schneider Electric LV836706 is a Masterpact MTZ2/3 drawout undervoltage release designed for critical power distribution systems. This component provides essential diagnostic capabilities and ensures safe operation by responding to voltage fluctuations. It is engineered for integration within the Masterpact MTZ drawout circuit breaker family, offering reliable protection and control.

Technical details

• Series: Masterpact MTZ2/3
• Type: Undervoltage Release with Diagnostics
• Mounting Configuration: Drawout
• AC Voltage Rating: 48 VAC
• AC Frequency: 50/60 Hz
• DC Voltage Rating: 48/60 VDC
• Functionality: Provides undervoltage trip and diagnostic feedback

Applications & compatibility

This undervoltage release is specifically designed for use with Schneider Electric Masterpact MTZ2 and MTZ3 series drawout circuit breakers. It is commonly deployed in medium-voltage switchgear applications within industrial facilities, data centers, and critical infrastructure where precise voltage monitoring and protection are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV836706 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
