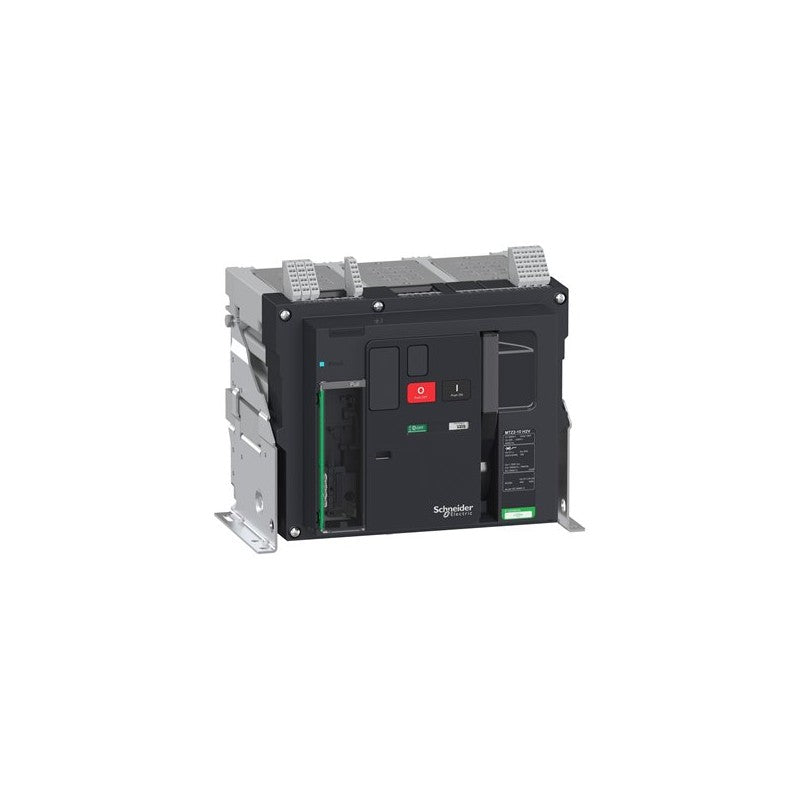

The Schneider Electric Masterpact MTZ2 10 H2V is a 3-pole, fixed circuit breaker designed for high-capacity electrical distribution systems. This breaker is part of the Masterpact MTZ series, known for its robust performance in demanding industrial environments. It is rated for 1000 Amperes and is supplied without a trip unit, allowing for customized protection schemes.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 10 H2V
• Current Rating: 1000 A
• Number of Poles: 3
• Mounting Type: Fixed
• Trip Unit: Not Included (Requires separate purchase and configuration)
• Voltage Class: The specific voltage class (e.g., 480V, 600V) is not explicitly encoded in the provided part number and should be verified against the manufacturer's datasheet.
• Interrupting Capacity: The interrupting capacity is not explicitly encoded in the provided part number and should be verified against the manufacturer's datasheet.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is suitable for main distribution panels, motor control centers, and large industrial power distribution applications. It is commonly found in heavy manufacturing facilities, data centers, and infrastructure projects requiring reliable and high-amperage circuit protection. Compatibility with specific trip units and accessories should be confirmed with Schneider Electric documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846161 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
