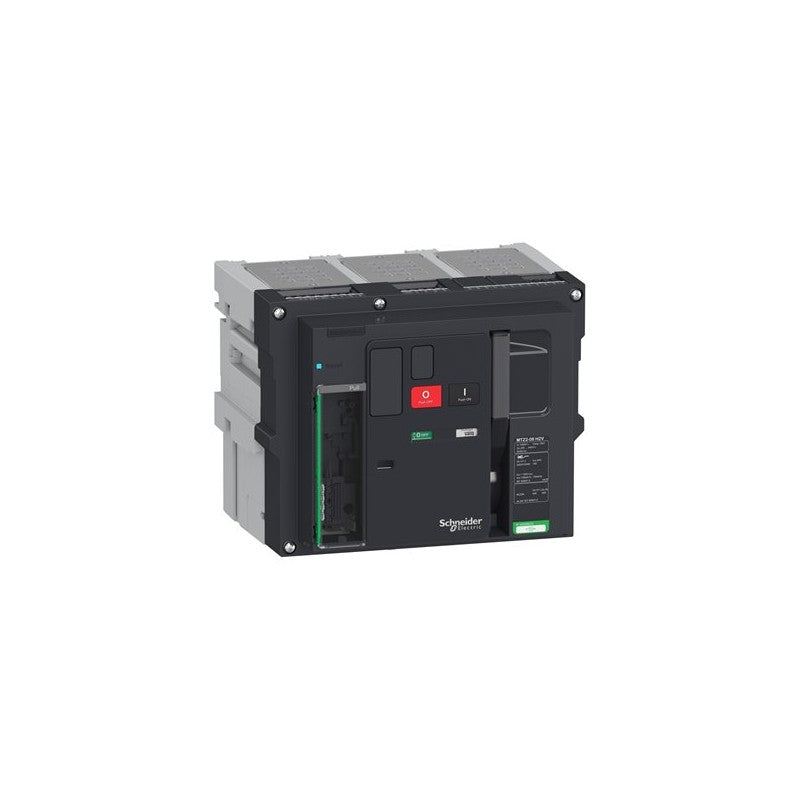

The Schneider Electric Masterpact MTZ2 08 H2V is a drawout circuit breaker designed for robust electrical distribution and protection. This 3-pole unit, rated for 800 Amperes, is a key component in high-capacity power systems, commonly integrated into main switchboards and distribution panels within industrial facilities.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 08 H2V
• Current Rating: 800 A
• Number of Poles: 3
• Mounting Type: Drawout
• Trip Unit: Not Included (Requires separate purchase or existing compatible unit)
• Voltage Class: Specific voltage rating should be verified against manufacturer datasheet for the H2V designation.
• Configuration: Designed for fixed or withdrawable installation in switchgear assemblies.

Applications & compatibility

This circuit breaker is engineered for use in demanding industrial environments, including manufacturing plants, data centers, and large commercial buildings. It is suitable for protecting main feeders and critical branch circuits where reliable power interruption and isolation are paramount. Compatibility with specific trip units and drawout mechanisms should be confirmed with the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846170 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
