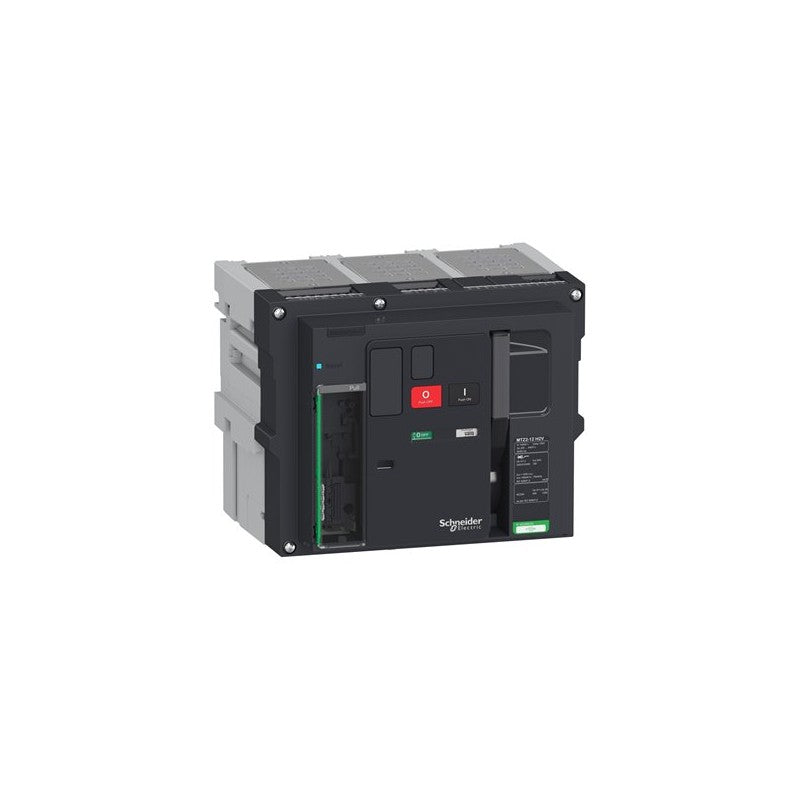

The Schneider Electric Masterpact MTZ2 12 H2V is a 3-pole circuit breaker designed for high-capacity power distribution systems. This drawout-style breaker, rated for 1250 Amperes, is a key component in ensuring electrical safety and operational continuity within demanding industrial environments. It is engineered to integrate seamlessly into Masterpact MTZ switchgear assemblies.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 12 H2V
• Current Rating: 1250 A
• Number of Poles: 3
• Configuration: Drawout
• Trip Unit: Not included (requires separate purchase and configuration)
• Voltage Class: Specific voltage rating should be verified against manufacturer datasheet; H2V designation may indicate a specific voltage range.
• Interrupting Capacity: Specific rating should be verified against manufacturer datasheet.

Applications & compatibility

This circuit breaker is commonly employed in main distribution panels, motor control centers, and large industrial power systems. It is suitable for applications requiring robust protection and reliable switching in sectors such as manufacturing plants, data centers, and utility substations. Ensure compatibility with your specific switchgear and protection scheme by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846172 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
