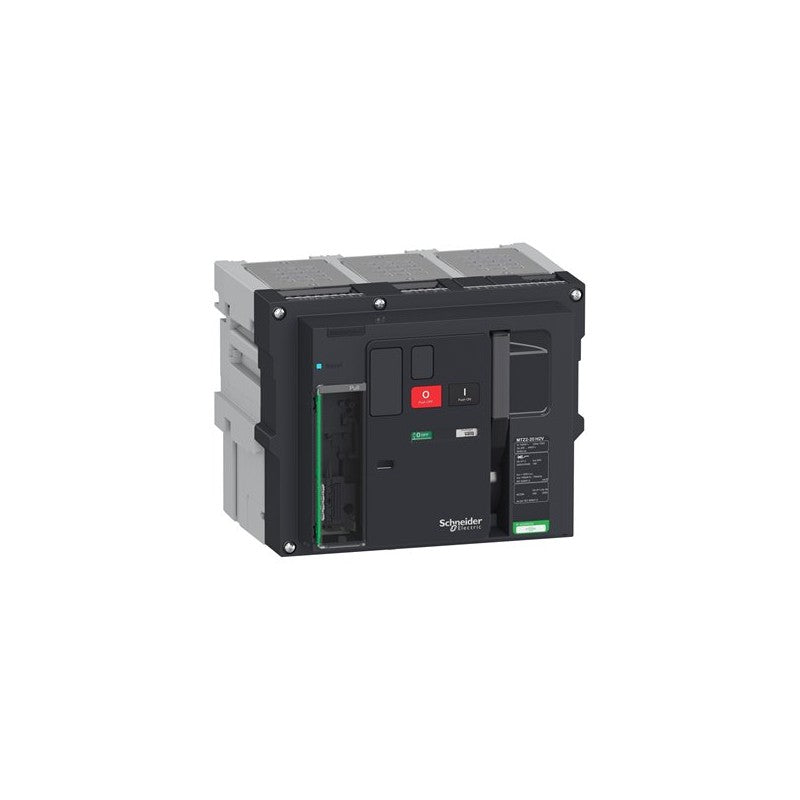

The Schneider Electric Masterpact MTZ2 20 H2V is a drawout circuit breaker designed for high-capacity power distribution systems. This 3-pole unit is rated for 2000 Amperes and is configured without an integrated trip unit, allowing for flexible customization with compatible protection modules. It is a key component in ensuring the safe and reliable operation of industrial electrical infrastructure.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 20 H2V
• Current Rating: 2000 A
• Number of Poles: 3
• Configuration: Drawout type
• Trip Unit: Sold separately; requires compatible Schneider Electric trip unit for full functionality.
• Voltage Class: Specific voltage rating should be verified against the manufacturer's datasheet for the intended application.
• Interrupting Capacity: Specific interrupting capacity should be verified against the manufacturer's datasheet.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is commonly deployed in heavy industrial environments, including manufacturing plants, data centers, and large commercial buildings. Its drawout design facilitates easy maintenance and replacement, making it suitable for critical power distribution panels and switchgear where uptime is paramount. Compatibility is dependent on the selected trip unit and the overall system design.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846174 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
