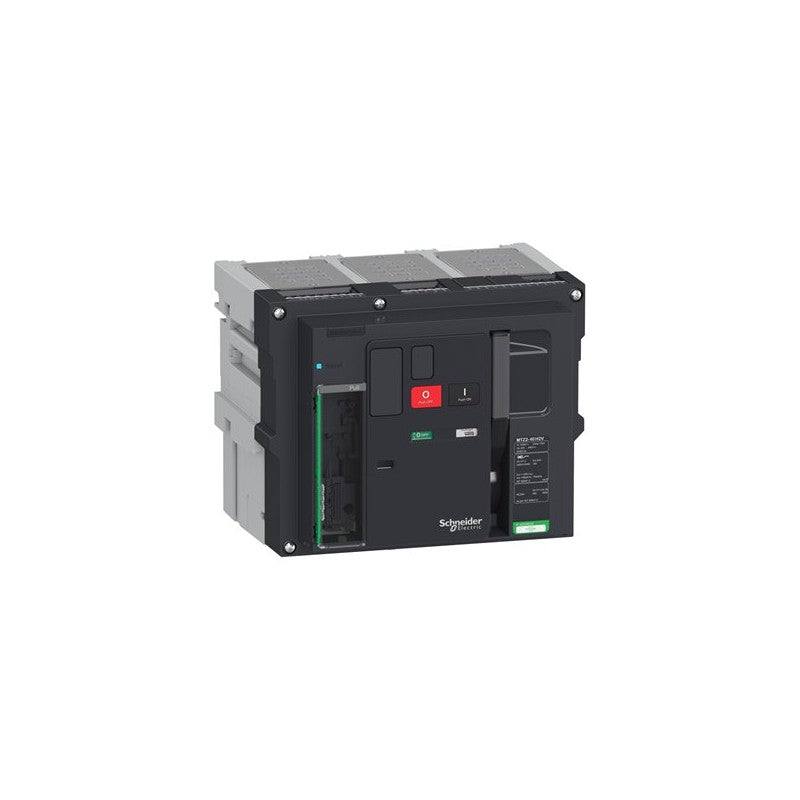

The Schneider Electric Masterpact MTZ2 40 H2V is a drawout circuit breaker designed for high-capacity power distribution systems. This 3-pole unit is rated for 4000 Amperes and is part of the Masterpact MTZ series, known for its advanced protection and control capabilities in demanding industrial environments. It is supplied without a trip unit, allowing for customized protection schemes.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 40 H2V
• Current Rating: 4000 A
• Number of Poles: 3
• Configuration: Drawout
• Included Components: Supplied without trip unit
• Voltage Class: Specific voltage class requires verification against manufacturer datasheet; MTZ series typically supports up to 690V.
• Interrupting Capacity: Specific interrupting capacity requires verification against manufacturer datasheet.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is engineered for use in main distribution switchboards and large motor control centers within heavy industrial facilities. It is suitable for applications requiring robust circuit protection and reliable isolation, such as in manufacturing plants, data centers, and power generation facilities. Compatibility with specific trip units and accessories should be confirmed with the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846177 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
