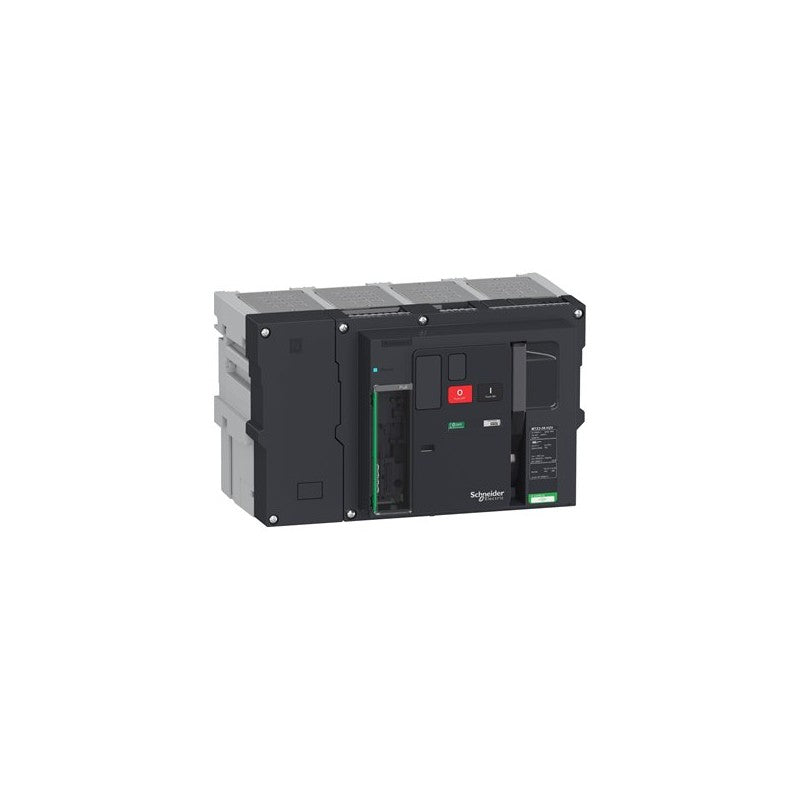

The Schneider Electric Masterpact MTZ2 08 H2V is a drawout circuit breaker designed for robust electrical distribution and protection in demanding industrial environments. This 4-pole breaker, rated for 800 Amperes, is a key component within the Masterpact MTZ family, known for its advanced performance and reliability in medium-voltage applications. It is engineered to provide essential circuit interruption capabilities without an integrated trip unit, allowing for customized protection schemes.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 08 H2V
• Current Rating: 800 A
• Number of Poles: 4
• Configuration: Drawout
• Trip Unit: Not Included (Requires separate purchase and installation)
• Voltage Class: Specific voltage class should be verified against manufacturer datasheet for the MTZ2 series.
• Interrupting Capacity: Specific interrupting capacity should be verified against manufacturer datasheet for the MTZ2 series.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is commonly deployed in main distribution switchboards, motor control centers, and substations within industries such as manufacturing, data centers, and utility power distribution. Its drawout design facilitates safe and efficient maintenance, making it suitable for applications requiring high uptime and accessibility for critical power infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846190 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
