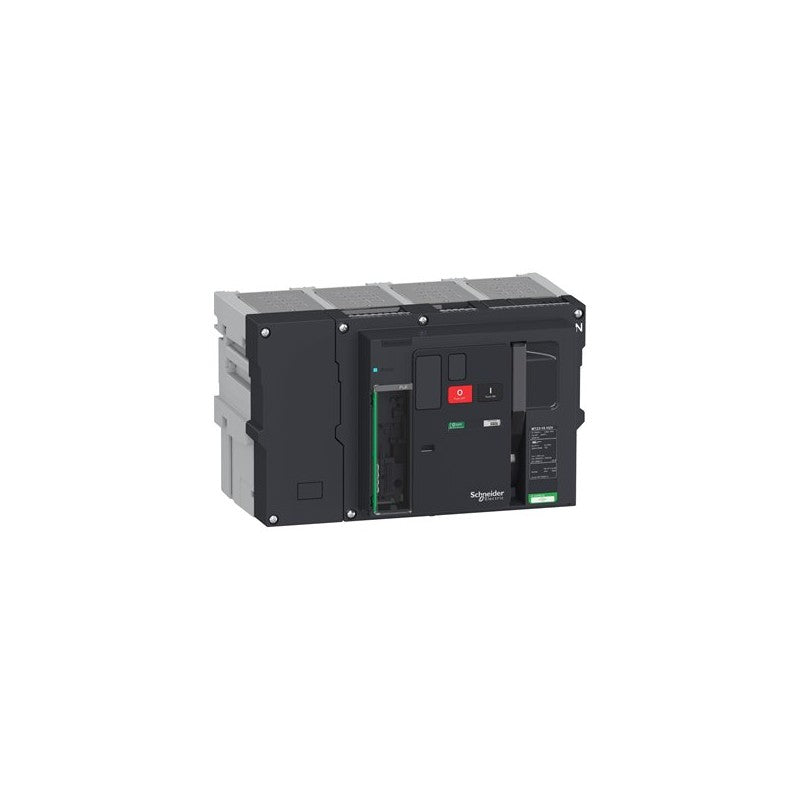

The Schneider Electric Masterpact MTZ2 16 H2V circuit breaker is engineered for robust electrical distribution and protection in demanding industrial environments. This 4-pole unit, rated for 1600 Amps, is designed as a drawout type for enhanced safety and maintenance accessibility. It is supplied without a trip unit, allowing for customized protection schemes based on specific application requirements.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 16 H2V
• Current Rating: 1600 Amps
• Number of Poles: 4
• Configuration: Drawout type
• Neutral Configuration: Right neutral
• Trip Unit: Not included; requires separate purchase and configuration.
• Voltage Class: For specific voltage class, please consult the manufacturer's datasheet or contact Industrial Automation Co.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is suitable for main power distribution, feeder protection, and motor control applications within large industrial facilities, data centers, and commercial buildings. Its drawout design facilitates safe isolation for maintenance on switchgear and panelboards, commonly found in power distribution units and substations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846213 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
