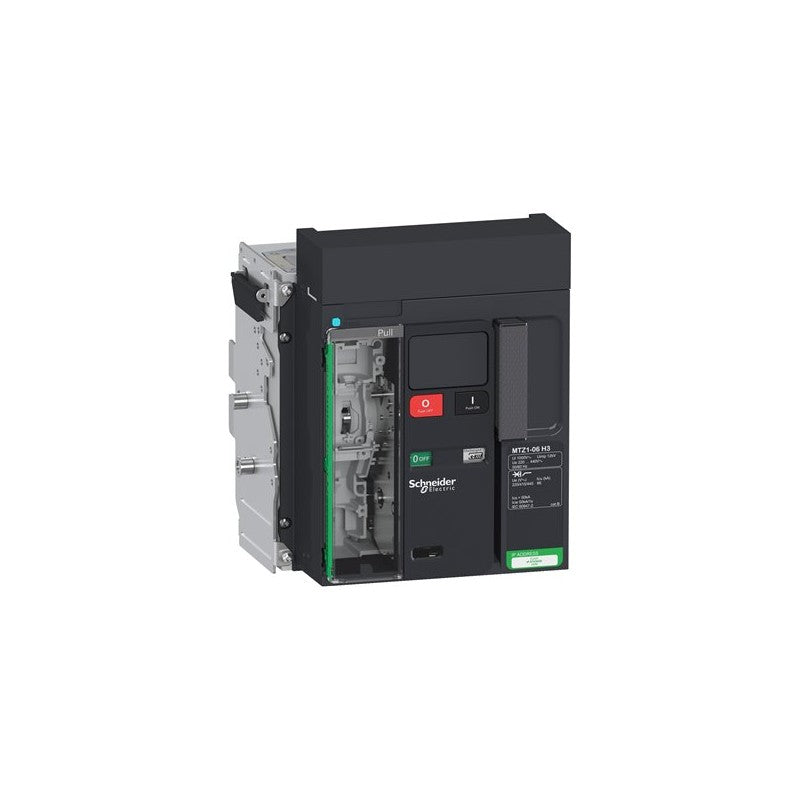

The Schneider Electric Masterpact MTZ1 06H3 is a drawout circuit breaker designed for robust electrical distribution and protection in demanding industrial environments. This 630 Amp, 3-pole unit is a key component within the Masterpact MTZ series, known for its advanced safety features and reliable performance in medium-voltage applications. It is engineered to provide essential circuit interruption capabilities for critical power systems.

Technical details

• Series: Masterpact MTZ
• Model Designation: MTZ1 06H3
• Rated Current: 630 A
• Number of Poles: 3
• Configuration: Drawout
• Protection Module: Supplied without a Micrologic electronic trip unit; requires separate purchase or existing compatible module.
• Voltage Class: Specific voltage rating should be verified against the manufacturer's datasheet for the MTZ1 06H3 model, as it is not explicitly stated in the provided information.
• Interrupting Capacity: Specific interrupting capacity should be verified against the manufacturer's datasheet for the MTZ1 06H3 model.

Applications & compatibility

This Masterpact MTZ1 circuit breaker is commonly deployed in main distribution panels, motor control centers, and substations across various industries. Its drawout design facilitates safe maintenance and replacement, making it suitable for applications requiring high uptime, such as manufacturing plants, data centers, and critical infrastructure facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846450 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
