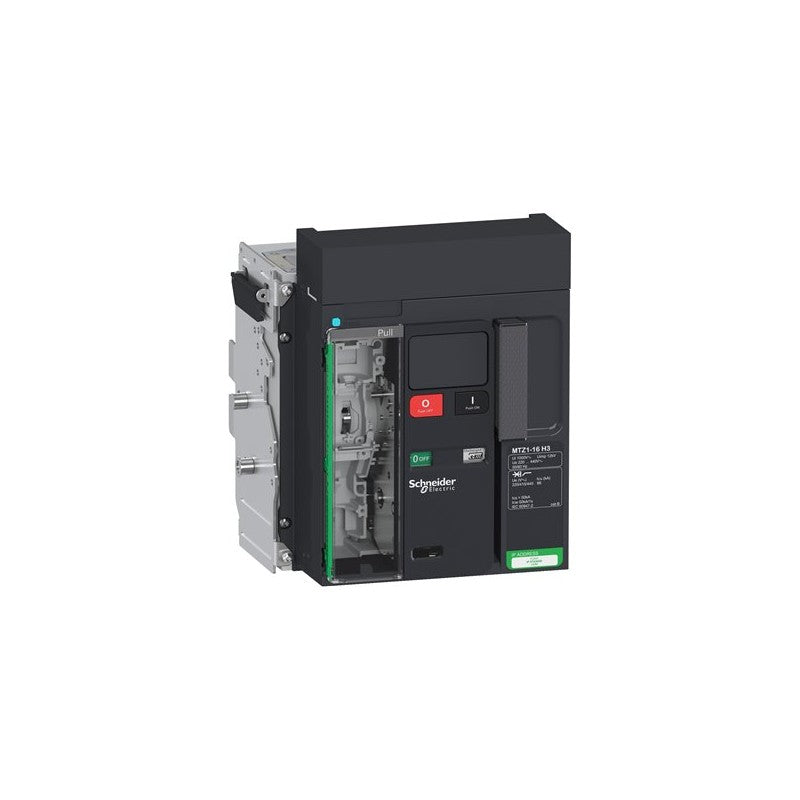

The Schneider Electric Masterpact MTZ1 16H3 is a drawout circuit breaker designed for robust power distribution applications. This 1600 Amp, 3-pole unit is part of the Masterpact MTZ series, known for its advanced protection and control capabilities in medium-voltage switchgear. It is engineered for reliable circuit interruption and isolation in demanding industrial environments.

Technical details

• Series: Masterpact MTZ1
• Configuration: 1600 Ampere, 3-Pole
• Mounting Type: Drawout
• Protection Module: Supplied without Micrologic electronic trip unit; requires separate Micrologic module for specific protection settings.
• Interrupting Capacity: Specific interrupting capacity rating should be verified against the manufacturer's datasheet for the exact configuration.
• Voltage Rating: Voltage class should be confirmed via the manufacturer's datasheet, as it is not explicitly encoded in the provided part number.
• Terminal Type: Designed for drawout connection, facilitating easy maintenance and replacement.
• Enclosure: Typically housed within a switchgear cubicle; specific dimensions and enclosure details are dependent on the overall switchgear assembly.

Applications & compatibility

This Masterpact MTZ1 circuit breaker is suitable for main incomer, feeder, and generator breaker applications in industrial facilities, data centers, and commercial buildings. It is commonly integrated into medium-voltage switchboards and substations requiring high-fault current withstand and reliable protection for critical electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846454 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
