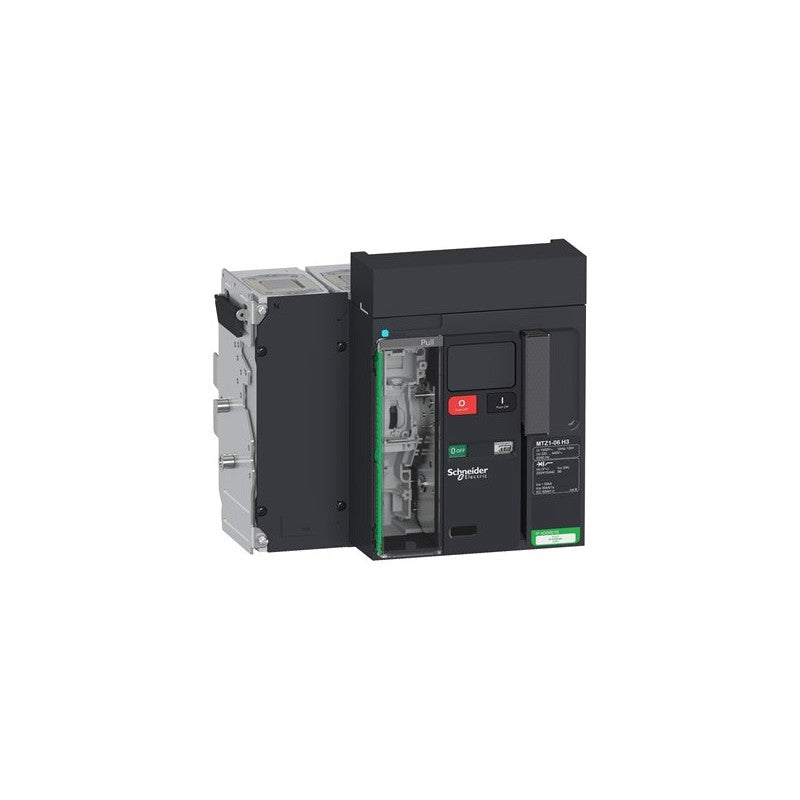

The Schneider Electric Masterpact MTZ1 06H3 is a drawout circuit breaker designed for robust electrical distribution and protection in demanding industrial environments. This 4-pole breaker, rated for 630 Amperes, is a key component within the Masterpact MTZ series, known for its advanced performance and reliability in medium-voltage applications.

Technical details

• Series: Masterpact MTZ
• Model Designation: MTZ1 06H3
• Configuration: 4-Pole (4P)
• Current Rating: 630 Amperes (A)
• Mounting Type: Drawout
• Protection Module: Supplied without a Micrologic electronic trip unit; requires separate Micrologic module for overcurrent protection settings.
• Voltage Class: For specific voltage class, consult the manufacturer's datasheet or verify with the installed Micrologic module.
• Interrupting Capacity: For specific interrupting capacity, consult the manufacturer's datasheet or verify with the installed Micrologic module.

Applications & compatibility

This Masterpact MTZ1 circuit breaker is commonly deployed in main distribution switchboards, motor control centers, and substations across various industries. Its drawout design facilitates safe and efficient maintenance, making it suitable for applications requiring high uptime, such as manufacturing plants, data centers, and critical infrastructure facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846457 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
