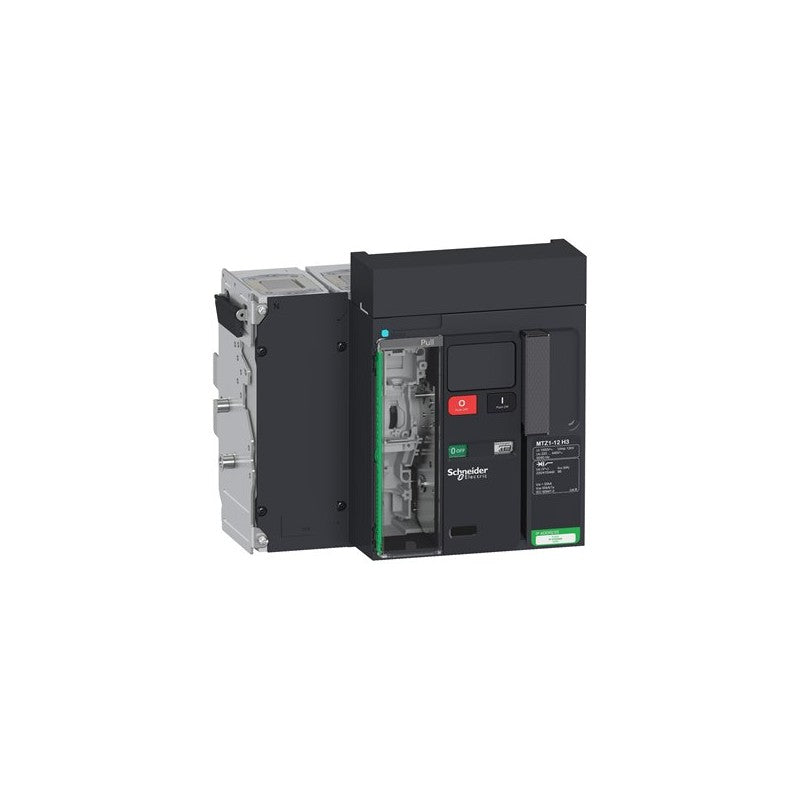

The Schneider Electric Masterpact MTZ1 12H3 is a drawout circuit breaker designed for robust electrical distribution applications. This 4-pole unit, rated for 1250 Amperes, is part of the Masterpact MTZ series, known for its advanced protection and control capabilities. It is engineered for use in demanding industrial environments where reliable power management is critical.

Technical details

• Series: Masterpact MTZ1
• Configuration: 4-Pole (4P)
• Current Rating: 1250 A
• Mounting Type: Drawout
• Protection Module: Without Micrologic (requires external or separate protection relay)
• Voltage Class: Verify specific voltage rating against manufacturer datasheet; MTZ series typically supports multiple voltage classes.
• Interrupting Capacity: Verify specific interrupting capacity against manufacturer datasheet.
• Enclosure Type: Standard industrial enclosure; consult datasheet for specific IP rating.

Applications & compatibility

This Masterpact MTZ1 circuit breaker is suitable for main power distribution, feeder protection, and motor control applications within industrial facilities. It is commonly integrated into switchgear assemblies for manufacturing plants, data centers, and commercial buildings. Compatibility with specific control systems and downstream equipment should be confirmed with the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV846460 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
