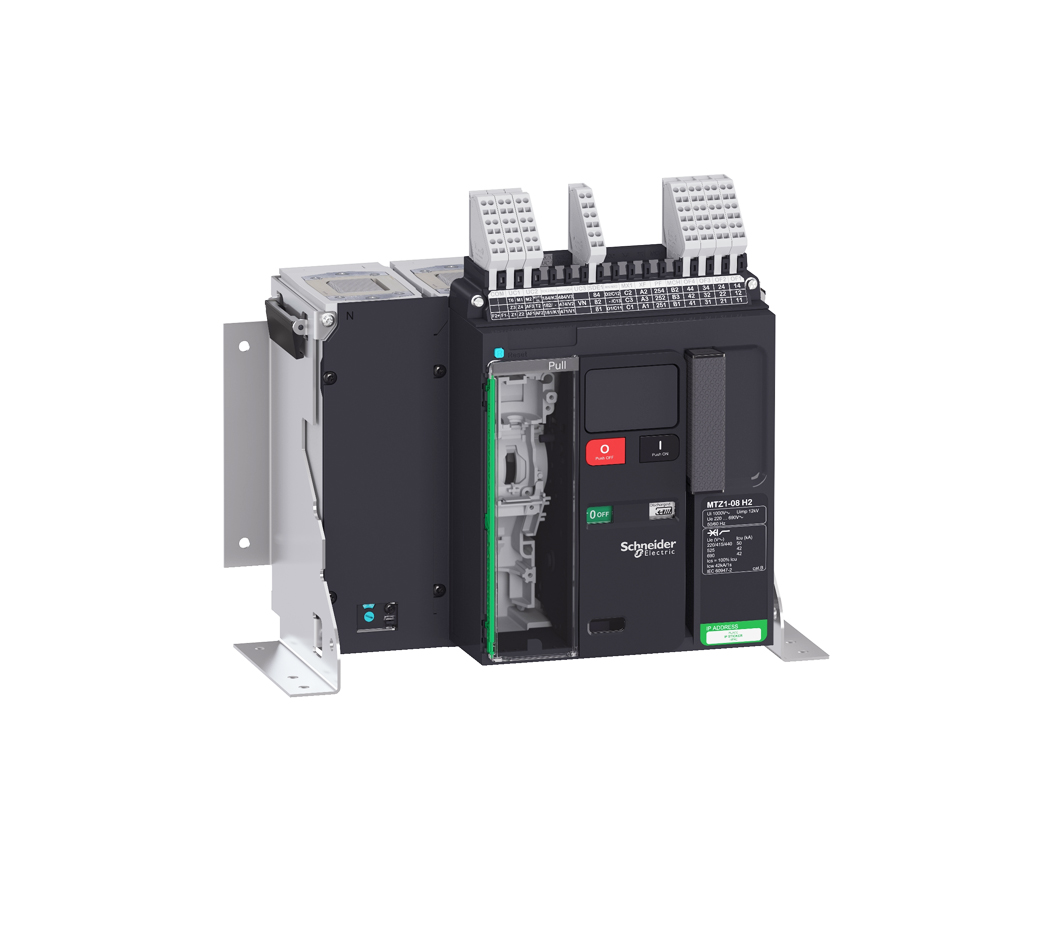

The Schneider Electric LV847157 is a fixed circuit breaker from the MTZ1 series, designed for robust electrical distribution and protection. This specific unit is configured as an MTZ1 16 H2 4P model, indicating a 1600 Ampere frame size and a 4-pole configuration. It is supplied without the Micrologic electronic trip unit, requiring a separate compatible Micrologic module for full functionality and adjustable protection settings.

Technical details

• Series: Schneider Electric MTZ1
• Type: Fixed Molded Case Circuit Breaker
• Frame Size: 1600 Amperes (indicated by '16' in part number)
• Poles: 4-Pole (indicated by '4P' in part number)
• Configuration: Fixed installation
• Trip Unit: Supplied without Micrologic electronic trip unit (requires separate purchase)
• Voltage Rating: Verify against manufacturer datasheet for specific voltage class (e.g., 400V, 415V, 600V AC).
• Interrupting Capacity: Verify against manufacturer datasheet for specific interrupting rating (kA).

Applications & compatibility

This Schneider Electric MTZ1 circuit breaker is suitable for main power distribution and feeder protection in industrial facilities, commercial buildings, and data centers. Its 4-pole design makes it ideal for applications requiring neutral conductor switching or protection. Compatibility is dependent on the selected Micrologic trip unit and the overall electrical system design.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847157 or contact our technical team for cross-reference assistance with compatible MTZ1 series components and Micrologic trip units.
