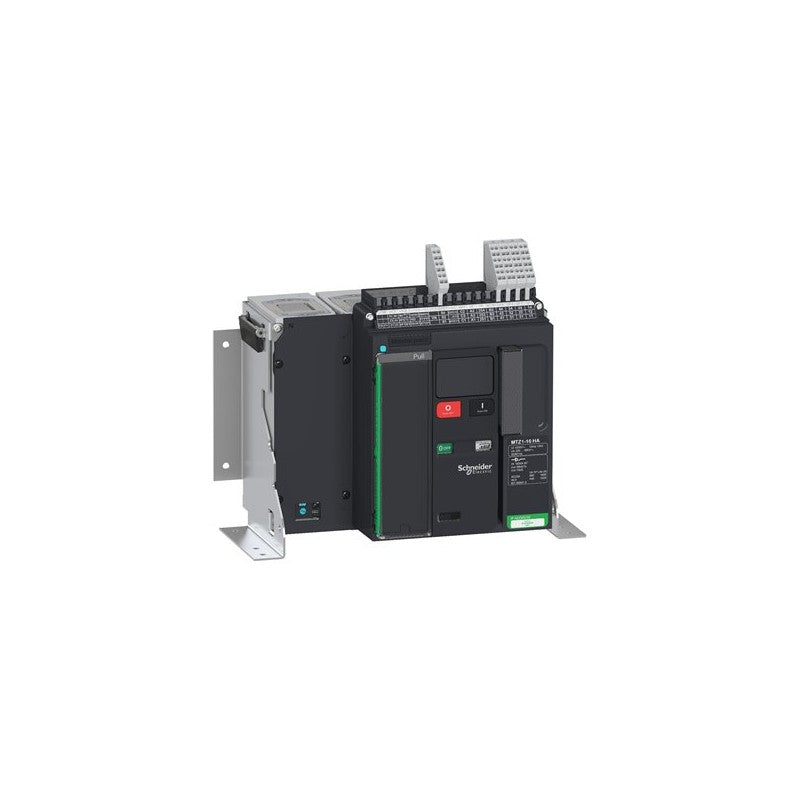

The Schneider Electric Masterpact MTZ1 16 HA is a 4-pole switch disconnector designed for robust electrical distribution applications. This unit, rated for 1600 Amperes, is a key component in ensuring safe isolation and switching of power circuits within industrial facilities. Its fixed mounting configuration makes it suitable for integration into main switchboards and distribution panels.

Technical details

• Series: Masterpact MTZ1
• Type: Switch Disconnector
• Configuration: 4 Poles
• Current Rating: 1600 A
• Mounting Type: Fixed
• Interrupting Capacity: HA (High Ampere) rating, indicating suitability for high fault current conditions. Specific interrupting rating requires datasheet verification.
• Voltage Class: Specific voltage class (e.g., 400V, 690V) is not explicitly encoded in the provided part number and requires datasheet verification.
• Terminal Type: Standard terminals suitable for busbar connections. Specific terminal dimensions and torque requirements should be confirmed via datasheet.

Applications & compatibility

This Masterpact MTZ1 switch disconnector is commonly employed in main power distribution systems for manufacturing plants, data centers, and large commercial buildings. It provides essential safety and operational control for circuits feeding heavy machinery, motor control centers, and critical power infrastructure, ensuring compliance with electrical safety standards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847168 or contact our technical team for cross-reference assistance with compatible Masterpact components.
