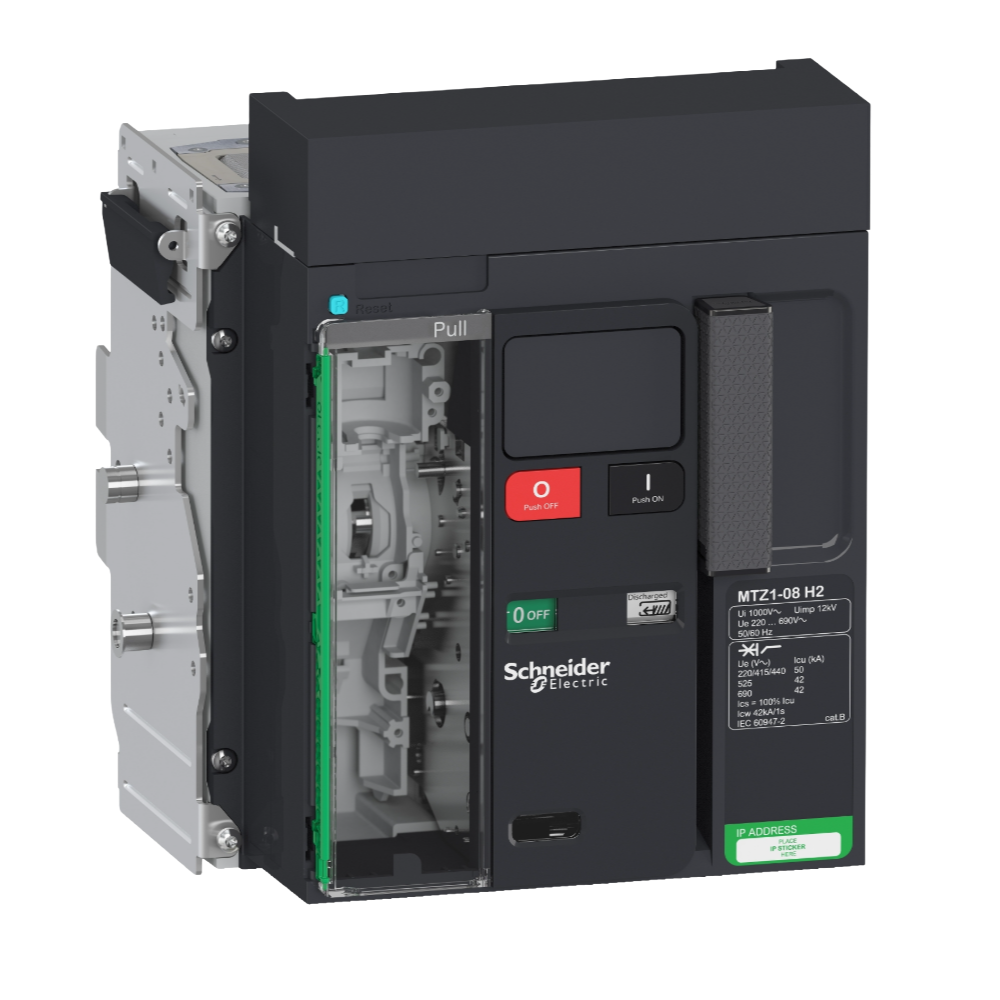

The Schneider Electric MasterPacT MTZ1 08H2 is an extractable basic unit for an air circuit breaker, designed for 3-pole configurations. This component serves as the foundational element for a complete MasterPacT MTZ1 circuit breaker assembly, specifically the 08H2 model. It is engineered for applications requiring robust circuit protection and reliable disconnection within industrial electrical distribution systems.

Technical details

• Series: MasterPacT MTZ1
• Model Designation: MTZ1 08H2
• Pole Configuration: 3-Pole (3P)
• Type: Extractable Basic Unit
• Control Unit Compatibility: Designed for use without an integrated Micrologic electronic trip unit; requires an external control unit for full functionality.
• Interrupting Capacity Class: The '08' in the part number typically indicates an interrupting capacity rating, which should be verified against the manufacturer's datasheet for precise Amperes (A) or kiloamperes (kA) specifications.
• Rated Operational Voltage: The 'H2' designation often relates to voltage ratings; consult the manufacturer's datasheet for specific voltage class (e.g., 600V, 690V).
• Mounting Type: Extractable mechanism for easy removal and maintenance within compatible switchgear.

Applications & compatibility

This MasterPacT MTZ1 basic unit is integral to Schneider Electric's air circuit breaker systems, commonly deployed in medium-voltage electrical distribution switchboards and motor control centers. It is suitable for protecting and switching circuits in industrial facilities, power generation plants, and large commercial buildings where reliable power management is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV847211 or contact our technical team for cross-reference assistance with compatible MasterPacT MTZ1 components.
