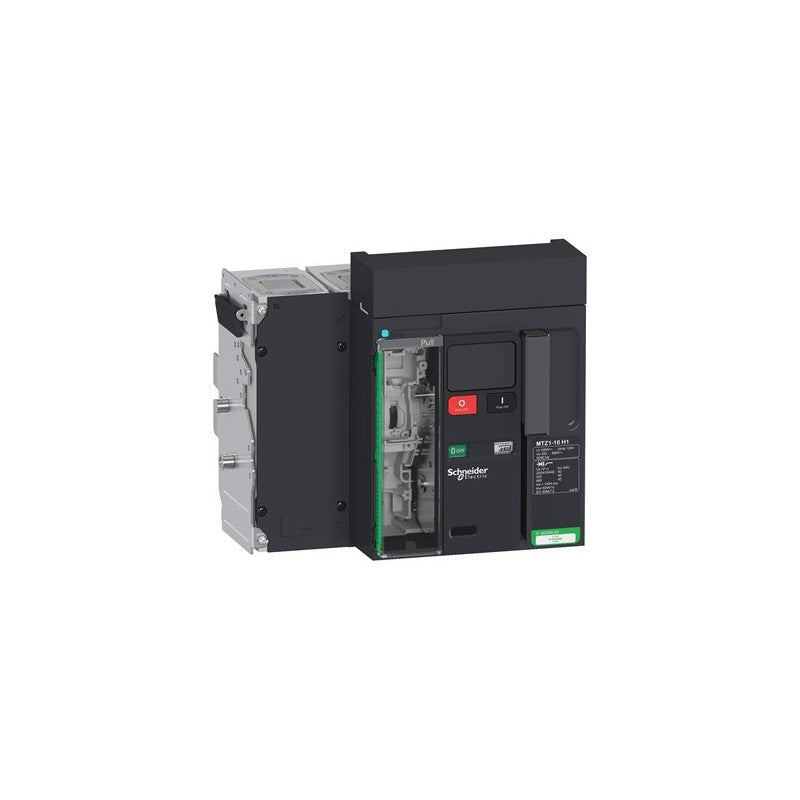

The Schneider Electric Masterpact MTZ1 16H1 is a drawout circuit breaker designed for robust electrical distribution applications. This 1600 Amp, 4-pole unit is engineered for reliable protection and isolation within industrial power systems. It is a key component for ensuring operational continuity and safety in demanding environments.

Technical details

• Series: Masterpact MTZ1
• Current Rating: 1600 A
• Poles: 4-Pole
• Configuration: Drawout
• Protection Module: Without Micrologic (requires external or separate protection relay)
• Voltage Class: Specific voltage class should be verified against manufacturer datasheet for application compatibility.
• Interrupting Capacity: Specific interrupting capacity should be verified against manufacturer datasheet.
• Frame Size: MTZ1 frame size

Applications & compatibility

This Masterpact MTZ1 circuit breaker is commonly deployed in main distribution switchboards, motor control centers, and sub-distribution panels across various industrial sectors. It is suitable for protecting circuits in manufacturing plants, data centers, and large commercial buildings where high current capacity and reliable fault interruption are critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847245 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
