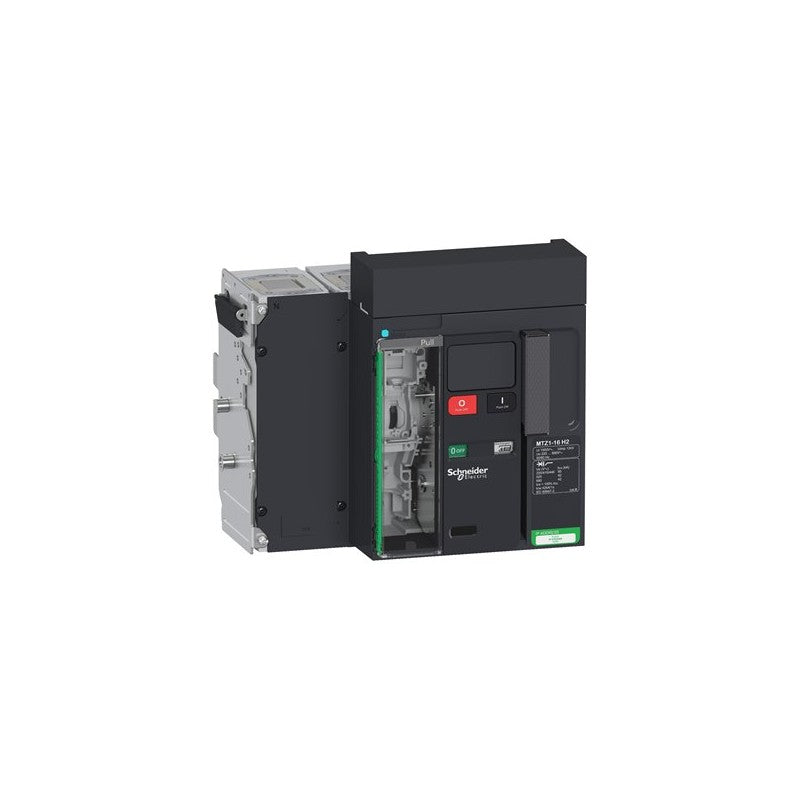

The Schneider Electric Masterpact MTZ1 16H2 is a 1600 Amp, 4-pole drawout circuit breaker designed for robust power distribution and protection in demanding industrial environments. This specific model, identified by the part number LV847247, is configured without a Micrologic electronic trip unit, requiring external control or protection schemes. It is a key component within the Masterpact MTZ series, known for its advanced performance and reliability in medium-voltage applications.

Technical details

• Series: Masterpact MTZ1
• Configuration: 1600 Ampere (A)
• Poles: 4-Pole (4P)
• Mounting Type: Drawout
• Trip Unit: Without Micrologic (requires external protection)
• Voltage Class: To be verified against manufacturer datasheet; typically designed for medium-voltage distribution systems.
• Interrupting Rating: To be verified against manufacturer datasheet.
• Frame Size: MTZ1

Applications & compatibility

This Masterpact MTZ1 circuit breaker is integral to main power distribution panels, motor control centers, and substations within heavy industries. It is commonly deployed in manufacturing plants, data centers, and infrastructure projects requiring reliable and high-capacity circuit protection. Compatibility with specific switchgear and control systems should be confirmed with the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847247 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
