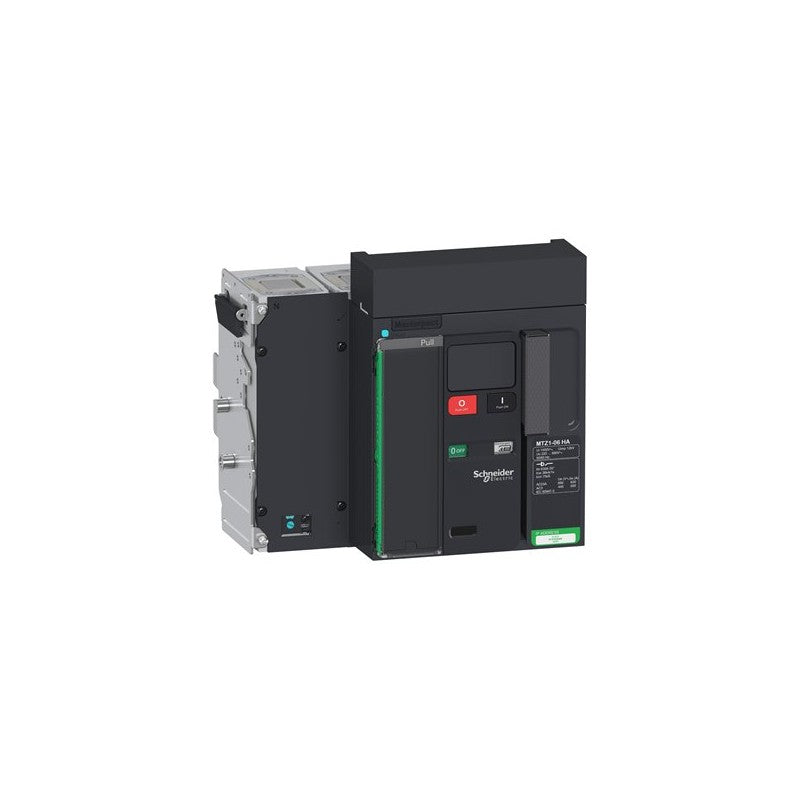

The Schneider Electric Masterpact MTZ1 06 HA is a drawout switch disconnector designed for robust circuit protection and isolation in industrial power distribution systems. This 4-pole unit is part of the Masterpact MTZ series, known for its advanced performance and reliability in demanding environments. It provides essential safety and operational control for electrical circuits.

Technical details

• Series: Masterpact MTZ
• Model Designation: MTZ1 06 HA
• Configuration: 4-pole switch disconnector
• Current Rating: 630 A
• Mounting Type: Drawout
• Interrupting Capacity: Specific interrupting capacity should be verified against the manufacturer's datasheet for the MTZ1 06 HA model.
• Voltage Rating: Specific voltage rating should be verified against the manufacturer's datasheet for the MTZ1 06 HA model.
• Operating Mechanism: Manual operation with provisions for remote operation (details to be confirmed via datasheet).

Applications & compatibility

This switch disconnector is commonly employed in medium-voltage switchgear and distribution panels for applications such as motor control centers, transformer feeders, and main incoming feeders. It is suitable for use in facilities requiring reliable isolation for maintenance and fault protection, including manufacturing plants, data centers, and utility substations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847249 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
