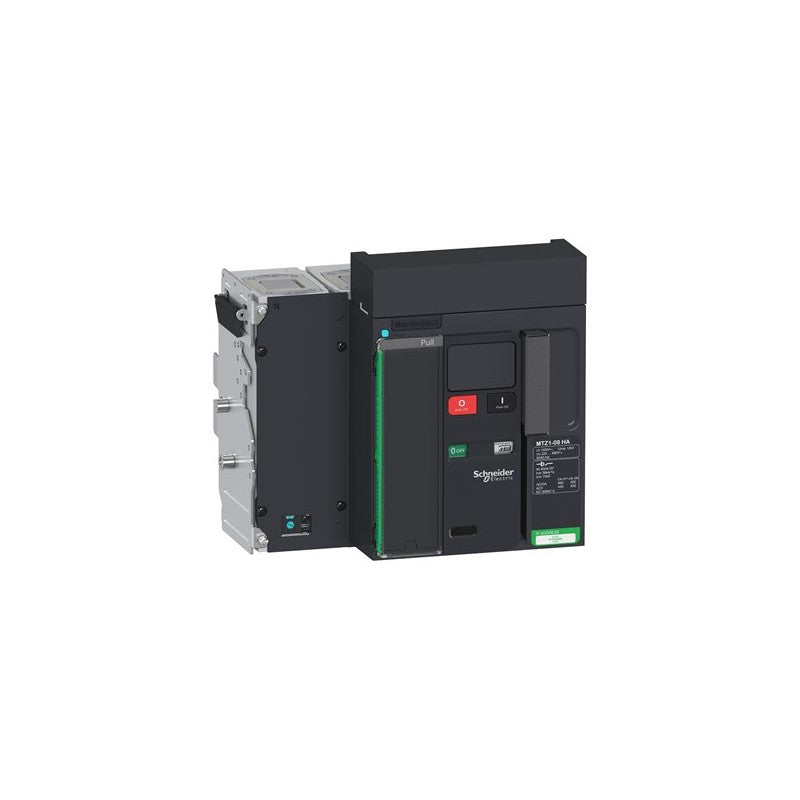

The Schneider Electric Masterpact MTZ1 08 HA is a drawout switch disconnector designed for robust circuit protection and isolation in industrial power distribution systems. This 4-pole unit, rated for 800 Amperes, is a key component in ensuring operational safety and reliability within demanding electrical environments.

Technical details

• Series: Masterpact MTZ1
• Model Designation: MTZ1 08 HA
• Configuration: 4-pole
• Current Rating: 800 A
• Mounting Type: Drawout
• Interrupting Capacity: Specific interrupting capacity details should be verified against the manufacturer's datasheet for the MTZ1 08 HA model.
• Voltage Rating: Specific voltage rating details should be verified against the manufacturer's datasheet for the MTZ1 08 HA model.
• Operating Mechanism: Integrated manual operating mechanism.

Applications & compatibility

This switch disconnector is commonly employed in medium-voltage switchgear and distribution panels for applications such as motor control centers, main incomers, and feeder protection. Its drawout capability facilitates safe maintenance and replacement without requiring complete panel disassembly, making it suitable for critical infrastructure like data centers, manufacturing plants, and utility substations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847251 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
