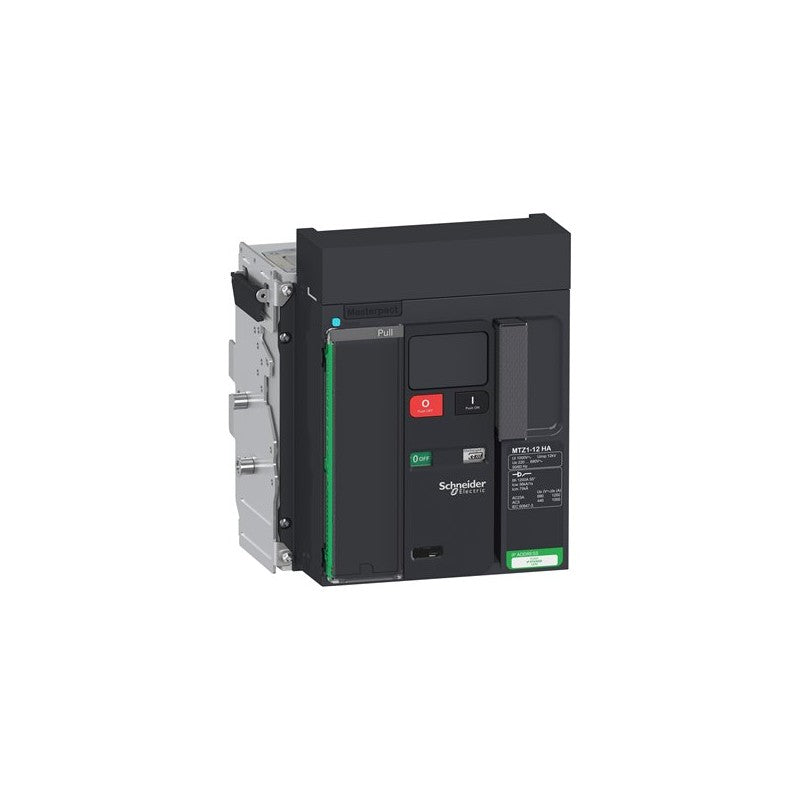

The Schneider Electric Masterpact MTZ1 12 HA is a 3-pole switch disconnector designed for robust circuit protection and isolation in industrial power distribution systems. This drawout unit, rated for 1250 Amperes, is a key component within the Masterpact MTZ series, known for its advanced performance and reliability in demanding environments. It provides essential safety and operational control for medium-voltage applications.

Technical details

• Series: Masterpact MTZ1
• Type: Switch Disconnector
• Configuration: 3 Poles
• Current Rating: 1250 A
• Mounting Style: Drawout
• Interrupting Capacity: HA (High Ampere) rating, indicating suitability for high fault current conditions. Specific interrupting rating requires datasheet verification.
• Voltage Class: While the part number does not explicitly state the voltage, Masterpact MTZ1 series typically operates in medium-voltage ranges. Buyers should verify the exact voltage rating against the manufacturer's datasheet.
• Actuation: Manual operation is standard for switch disconnectors; specific actuation mechanisms (e.g., rotary handle, lever) should be confirmed via datasheet.

Applications & compatibility

This Masterpact MTZ1 switch disconnector is commonly deployed in main distribution switchboards, motor control centers, and substations within industries such as manufacturing, data centers, and utilities. Its drawout design facilitates safe maintenance and replacement, ensuring minimal downtime for critical power infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847254 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
