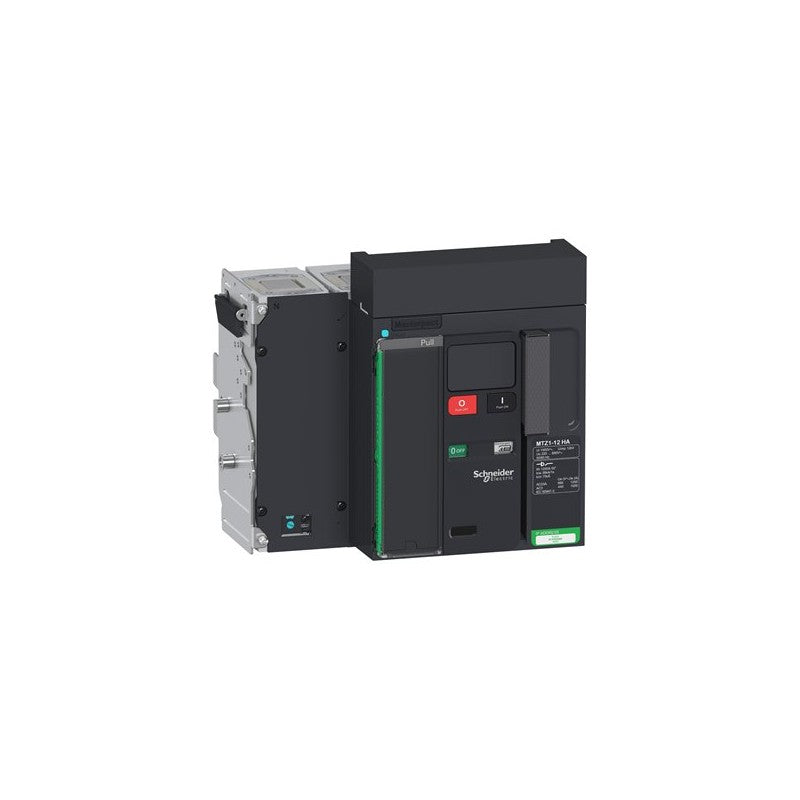

The Schneider Electric Masterpact MTZ1 12 HA is a 4-pole switch disconnector designed for robust circuit protection and isolation in industrial power distribution systems. This drawout unit, rated for 1250 Amperes, is a key component for ensuring operational safety and reliability in demanding environments. Its drawout capability facilitates easier maintenance and replacement without requiring complete system shutdown.

Technical details

• Series: Masterpact MTZ1
• Type: Switch Disconnector
• Configuration: 4-pole
• Current Rating: 1250 A
• Mounting Style: Drawout
• Interrupting Capacity: HA (High Ampere) rating, indicating suitability for high fault current conditions. Specific interrupting capacity values should be verified against the manufacturer's datasheet.
• Voltage Class: Specific voltage class not explicitly determinable from the provided information. Buyers should consult the manufacturer's datasheet for precise voltage ratings.

Applications & compatibility

This Masterpact MTZ1 switch disconnector is commonly deployed in medium-voltage switchgear for power distribution substations, industrial facilities, and large commercial buildings. It is essential for applications requiring reliable isolation of circuits for maintenance, fault clearing, and system reconfiguration, such as in manufacturing plants, data centers, and utility infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847255 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
