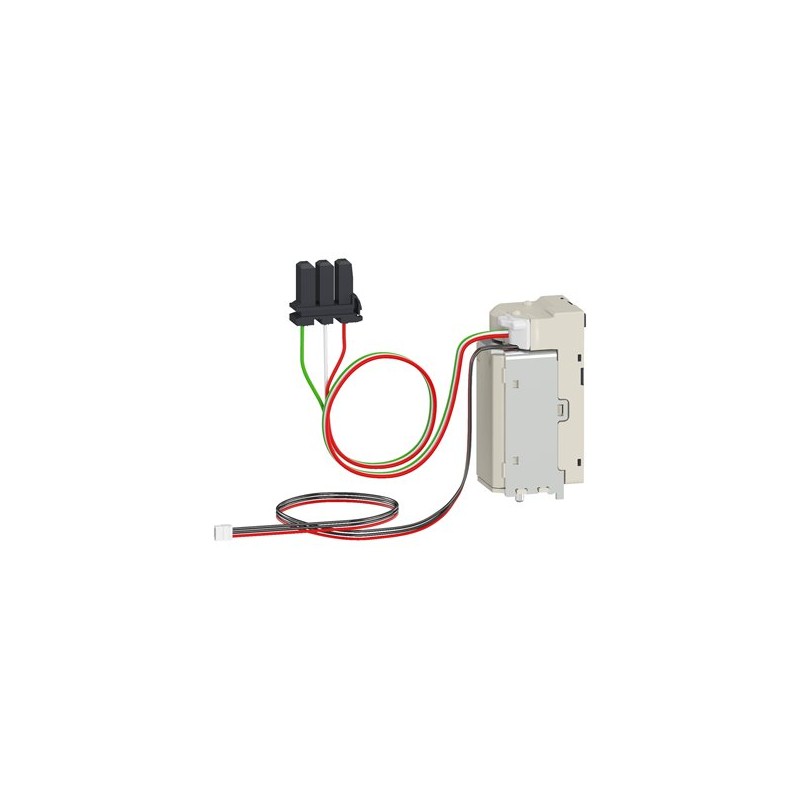

The Schneider Electric LV847417 is an XF closing voltage release designed for diagnostic and communication functions within Masterpact MTZ1 drawout circuit breakers. This component operates with a nominal voltage input of 380/480 VAC at a frequency of 50/60 Hz, providing essential control and monitoring capabilities for high-voltage switchgear.

Technical details

• Series: Masterpact MTZ1
• Function: XF Closing Voltage Release with Diagnostics and Communicating
• Voltage Input: 380/480 VAC
• Frequency: 50/60 Hz
• Form Factor: Drawout
• Control Type: Voltage Release
• Features: Integrated diagnostics and communication capabilities
• Compatibility: Designed for Masterpact MTZ1 drawout circuit breakers

Applications & compatibility

This voltage release is specifically engineered for integration into Masterpact MTZ1 drawout circuit breaker systems. It is commonly found in medium-voltage switchgear applications within power distribution networks, industrial facilities, and critical infrastructure where reliable circuit protection and advanced monitoring are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847417 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
