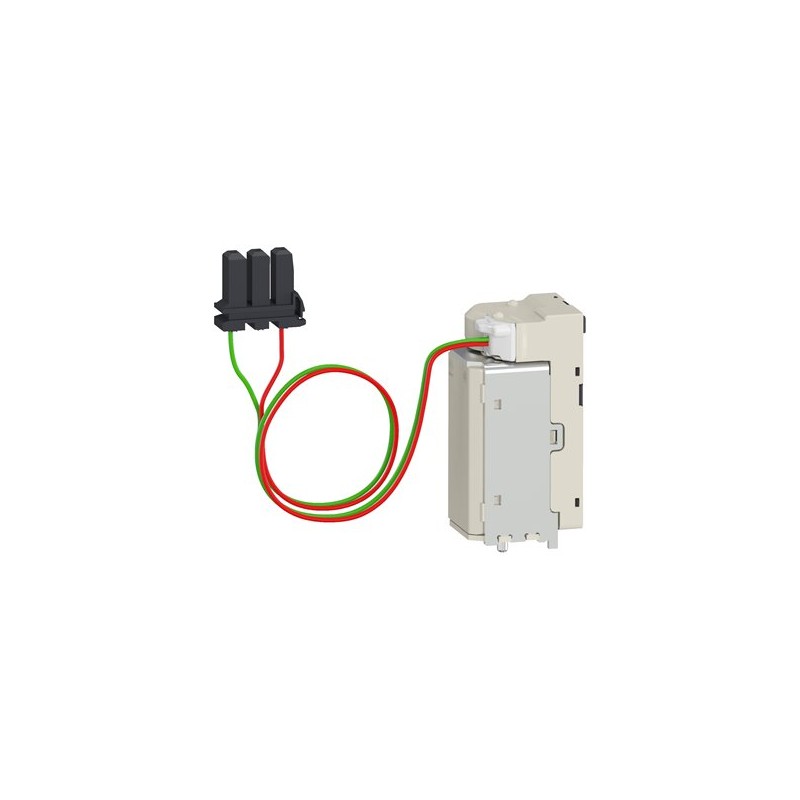

The Schneider Electric LV847441 is a standard XF closing voltage release designed for Masterpact MTZ1 drawout circuit breakers. This accessory provides essential control functionality for the Masterpact MTZ1 drawout series, ensuring proper operation and safety within electrical distribution systems. Its specific voltage ratings are critical for integration into compatible control circuits.

Technical details

• Product Type: XF Closing Voltage Release
• Series: Masterpact MTZ1 Drawout
• Voltage Rating (AC): 48 VAC
• Frequency: 50/60 Hz
• Voltage Rating (DC): 48/60 VDC
• Function: Standard closing release
• Mounting Type: Drawout

Applications & compatibility

This voltage release is specifically engineered for use with Schneider Electric's Masterpact MTZ1 drawout air circuit breakers. It is commonly found in medium-voltage electrical distribution switchgear for applications such as power generation facilities, industrial plants, commercial buildings, and data centers where reliable circuit breaker operation is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847441 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
