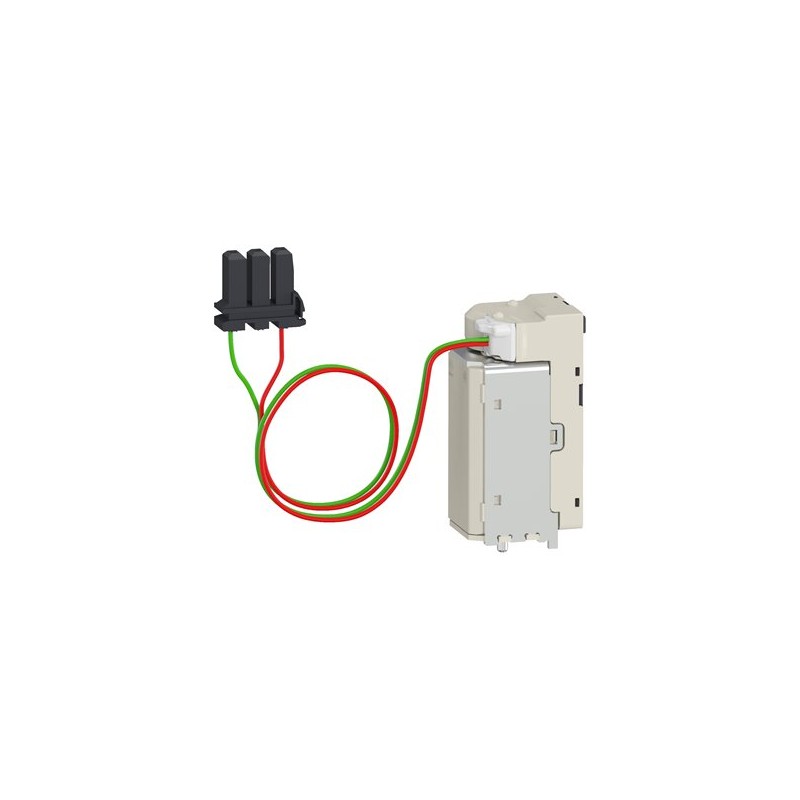

The Schneider Electric LV847445 is a standard XF closing voltage release designed for Masterpact MTZ1 drawout circuit breakers. This component operates within a specified voltage range, ensuring proper functionality for the protection and control of electrical distribution systems. Its integration into the Masterpact MTZ1 platform signifies its role in high-capacity power management applications.

Technical details

• Series: Masterpact MTZ1
• Component Type: XF Closing Voltage Release
• Voltage Rating: 380/480 VAC
• Frequency: 50/60 Hz
• Form Factor: Drawout
• Function: Provides a voltage-actuated closing function for circuit breakers.
• Standard: Designed to meet standard operational requirements for industrial electrical systems.

Applications & compatibility

This voltage release is specifically engineered for use with Schneider Electric's Masterpact MTZ1 drawout circuit breakers. It is commonly found in medium-voltage electrical distribution switchgear for applications such as power generation facilities, large industrial plants, data centers, and commercial buildings where reliable and robust circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV847445 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ1 components.
