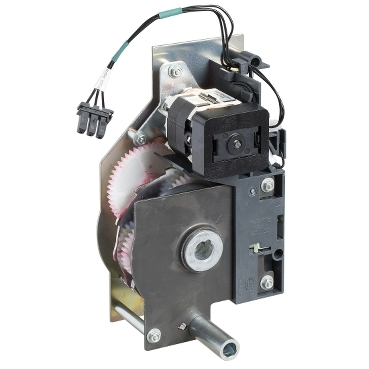

The Schneider Electric MCH gear motor is designed for drawout configurations within the MTZ1 series. This motor operates on a 200/240 V AC power supply, providing essential mechanical drive functionality for specific switchgear applications. Its inclusion in the MTZ1 drawout system indicates a focus on modularity and ease of maintenance in electrical distribution equipment.

Technical details

• Motor Type: Gear Motor
• Voltage Rating: 200/240 V AC
• Series Compatibility: MTZ1
• Configuration: Drawout
• Function: Mechanical drive for switchgear operation
• Control Type: AC powered motor
• Mounting: Designed for drawout chassis integration

Applications & compatibility

This Schneider Electric MCH gear motor is specifically engineered for integration into MTZ1 drawout circuit breaker frames. It facilitates the remote or automated operation of the circuit breaker mechanism, commonly found in medium-voltage switchgear assemblies for power distribution and protection in industrial facilities, substations, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV847466 or contact our technical team for cross-reference assistance with compatible MTZ1 components.
