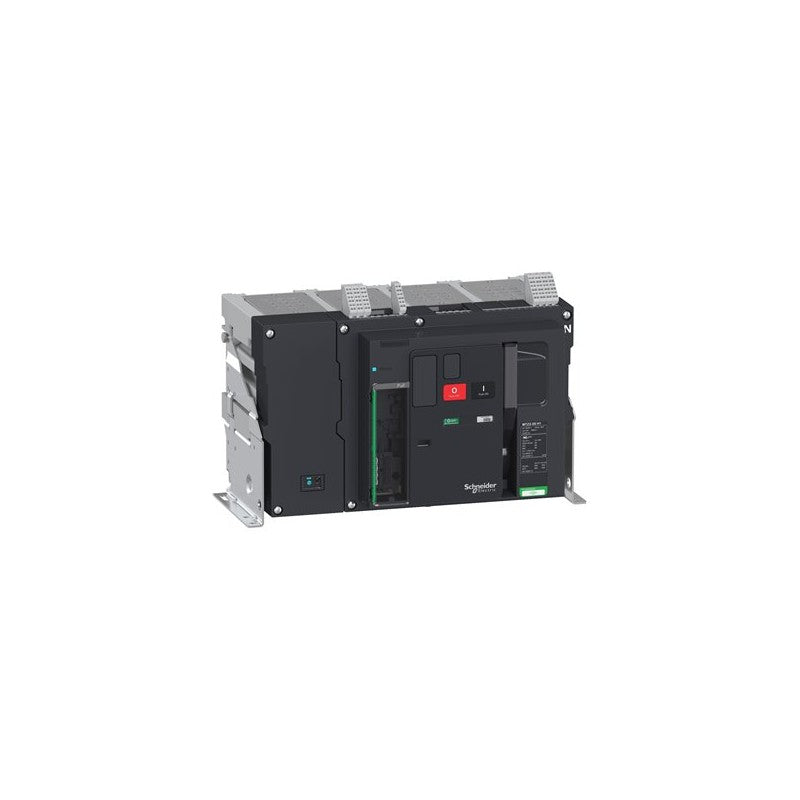

The Schneider Electric Masterpact MTZ2 08H1 is a fixed-position circuit breaker designed for robust electrical distribution systems. This 800 Amp, 4-pole breaker is part of the Masterpact MTZ series, known for its advanced protection and control capabilities in demanding industrial environments. It features a right-hand neutral configuration, offering flexibility in panel layout and wiring.

Technical details

• Series: Masterpact MTZ
• Model: MTZ2 08H1
• Current Rating: 800 A
• Poles: 4-Pole
• Configuration: Fixed
• Neutral Position: Right Neutral (N)
• Protection Module: No Micrologic (requires external protection relay or system)
• Interrupting Capacity: Verify with manufacturer datasheet for specific ratings (e.g., Icu, Ics)

Applications & compatibility

This Masterpact MTZ circuit breaker is suitable for main incomers, feeders, and motor control applications in medium-voltage switchgear. It is commonly found in power distribution for manufacturing plants, data centers, and critical infrastructure where reliable and safe electrical isolation is paramount. Compatibility with specific protection schemes and control systems should be confirmed against the Micrologic module or external relay specifications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848183 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
