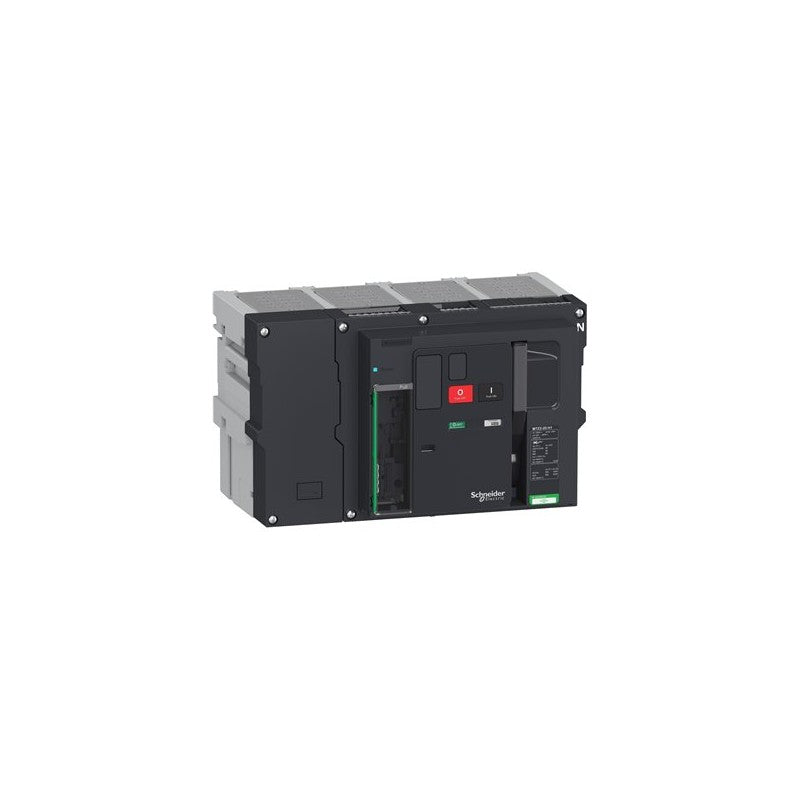

The Schneider Electric Masterpact MTZ2 12H1 is a drawout circuit breaker designed for robust power distribution applications. This 4-pole unit operates at 1250 Amperes, providing essential protection for electrical systems in demanding industrial environments. Its drawout configuration facilitates easier maintenance and replacement without requiring complete system shutdown.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 12H1
• Configuration: 4-Pole (4P)
• Current Rating: 1250 A
• Mounting Type: Drawout
• Neutral Pole Configuration: Right Neutral (Right N)
• Control Unit: No Micrologic (requires external control or protection relay)
• Interrupting Capacity: Verify with manufacturer datasheet for specific ratings.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is suitable for main distribution panels, motor control centers, and large equipment protection in sectors such as manufacturing, data centers, and utility substations. It is designed to integrate with systems requiring high-capacity circuit protection and flexible maintenance procedures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848228 or contact our technical team for cross-reference assistance with compatible Masterpact components.
