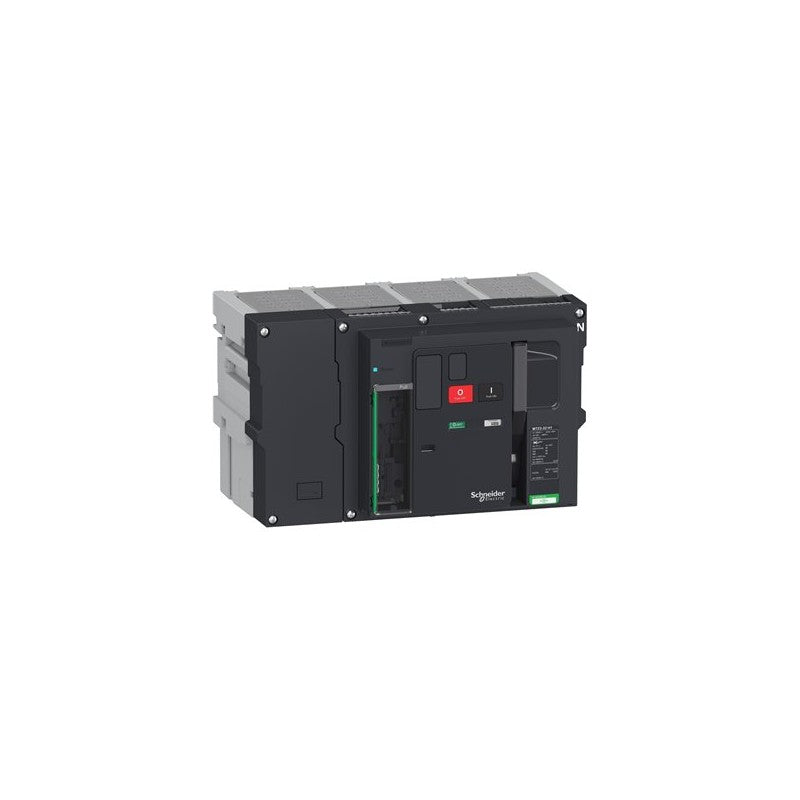

The Schneider Electric Masterpact MTZ2 16H1 is a drawout circuit breaker designed for robust electrical distribution systems. This 4-pole unit, rated for 1600 Amperes, is part of the Masterpact MTZ series, known for its advanced protection and control capabilities. The "16H1" designation within the part number indicates specific configuration details relevant to its operational parameters and physical layout.

Technical details

• Series: Masterpact MTZ
• Model: MTZ2 16H1
• Configuration: 4-pole (4P)
• Current Rating: 1600 A
• Mounting Type: Drawout
• Neutral Pole Configuration: Right Neutral (Right N)
• Protection Module: No Micrologic (requires external or separate protection relay)
• Interrupting Capacity: Verify with manufacturer datasheet for specific rating

Applications & compatibility

This Masterpact MTZ2 circuit breaker is suitable for main power distribution and feeder protection in commercial and industrial facilities. It is commonly integrated into switchgear assemblies for applications such as data centers, manufacturing plants, and large building complexes where reliable and configurable circuit protection is essential. Compatibility with specific switchgear frames and protection schemes should be confirmed against the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848229 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
