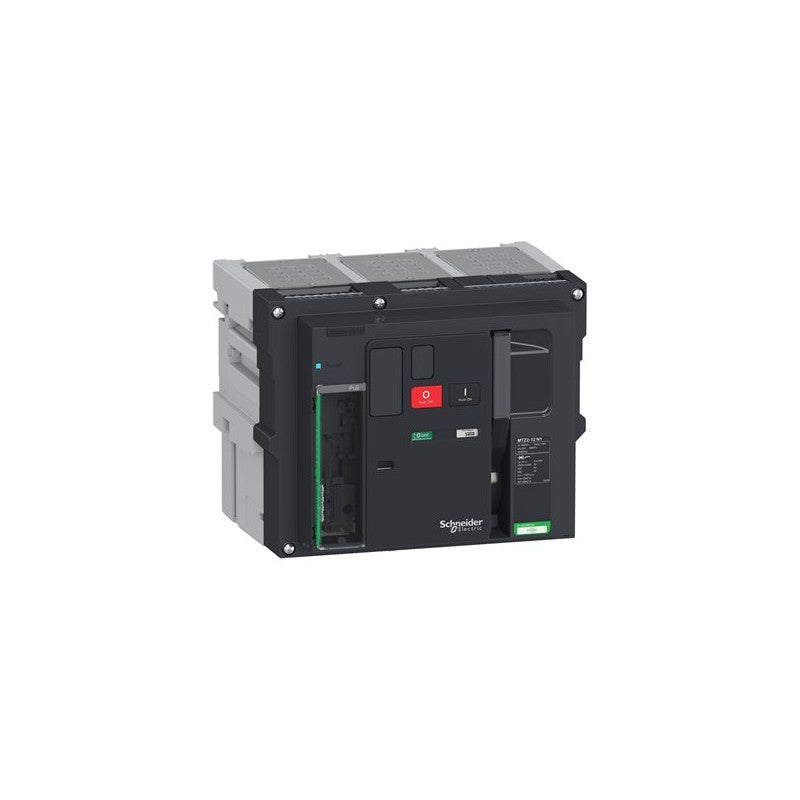

The Schneider Electric Masterpact MTZ2 12N1 is a drawout circuit breaker designed for robust electrical distribution systems. This 3-pole unit is rated for 1250 Amperes and is part of the Masterpact MTZ series, known for its advanced protection and control capabilities in demanding industrial environments.

Technical details

• Series: Masterpact MTZ2
• Configuration: 3-pole drawout circuit breaker
• Current Rating: 1250 A
• Type: Air circuit breaker
• Control Unit: Supplied without Micrologic electronic trip unit; requires separate Micrologic unit for full functionality and protection settings.
• Mounting: Drawout design facilitates easy installation, maintenance, and replacement within switchgear assemblies.
• Voltage Class: Specific voltage class should be verified against the manufacturer's datasheet for the intended application.
• Interrupting Capacity: Specific interrupting capacity rating should be verified against the manufacturer's datasheet.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is engineered for use in main distribution switchboards and sub-distribution panels within commercial buildings, data centers, and heavy industrial facilities. It is suitable for protecting electrical circuits against overloads and short circuits in applications requiring high current handling and reliable operation, such as in manufacturing plants, hospitals, and large infrastructure projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848258 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
