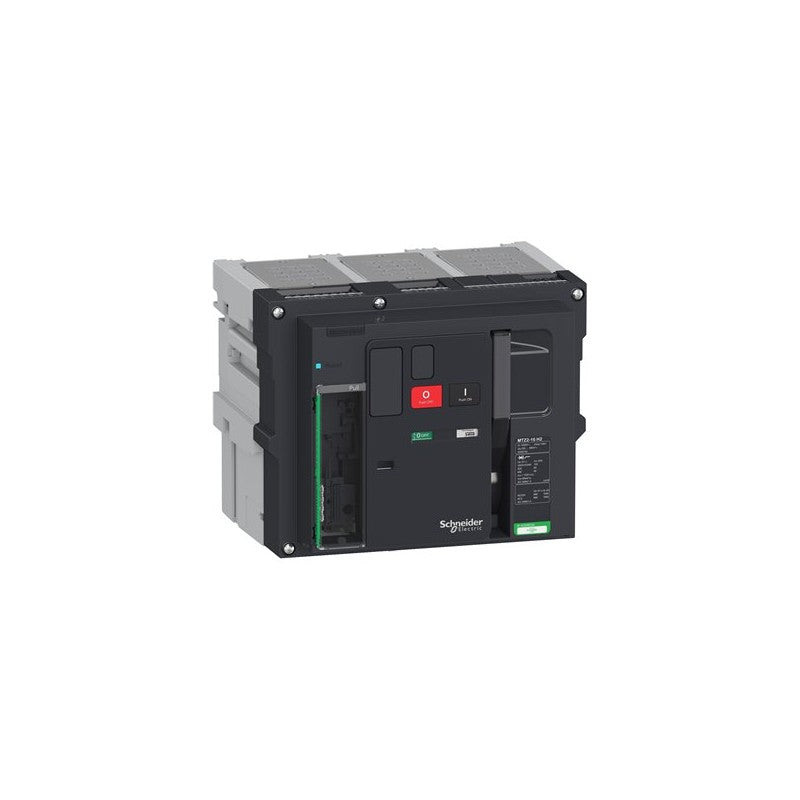

The Schneider Electric Masterpact MTZ2 16H2 is a drawout circuit breaker designed for robust power distribution and protection in demanding industrial environments. This 1600 Amp, 3-pole unit is engineered for high-fault current applications, providing reliable circuit interruption. It is a key component in medium-voltage switchgear assemblies, ensuring the safety and operational continuity of electrical systems.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 16H2
• Rated Current: 1600 Amperes
• Number of Poles: 3
• Configuration: Drawout type
• Protection Module: Without Micrologic trip unit (requires external or separate protection relaying)
• Interrupting Capacity: Verify specific rating against manufacturer datasheet for application suitability.
• Voltage Class: Verify specific rating against manufacturer datasheet for application suitability.

Applications & compatibility

This Masterpact MTZ2 circuit breaker is commonly deployed in main distribution switchboards, motor control centers, and substations within heavy industries such as manufacturing plants, data centers, and utility power distribution networks. Its drawout design facilitates safe maintenance and replacement, minimizing downtime in critical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848274 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
