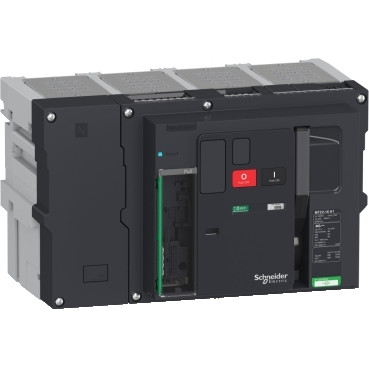

The Schneider Electric MTZ2 16 H1 4P is an extractable circuit breaker designed for robust electrical distribution systems. As part of the MTZ series, this 4-pole breaker offers reliable protection and is engineered for demanding industrial environments. Its extractable design facilitates maintenance and operational flexibility within switchgear assemblies.

Technical details

• Series: MTZ
• Model Designation: MTZ2 16 H1
• Poles: 4-pole
• Configuration: Extractable unit
• Interrupting Rating: H1 (This designation typically indicates a specific interrupting capacity; refer to manufacturer datasheet for precise Amperes RMS value)
• Frame Size: 16 (This typically denotes the nominal current rating of the breaker frame; refer to manufacturer datasheet for precise Ampere rating)
• Micrologic Unit: Not included (This breaker is designed for use with an external Micrologic trip unit, which must be specified separately)
• Voltage Class: For specific voltage ratings (e.g., 400V, 415V, 690V), please consult the Schneider Electric datasheet for the MTZ2 series.

Applications & compatibility

This Schneider Electric MTZ2 16 H1 4P breaker is commonly deployed in main distribution panels, motor control centers, and sub-distribution boards within manufacturing plants, data centers, and commercial buildings. It is compatible with switchgear designed to accommodate extractable circuit breaker modules, ensuring seamless integration into existing infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV848280 or contact our technical team for cross-reference assistance with compatible MTZ series components.
