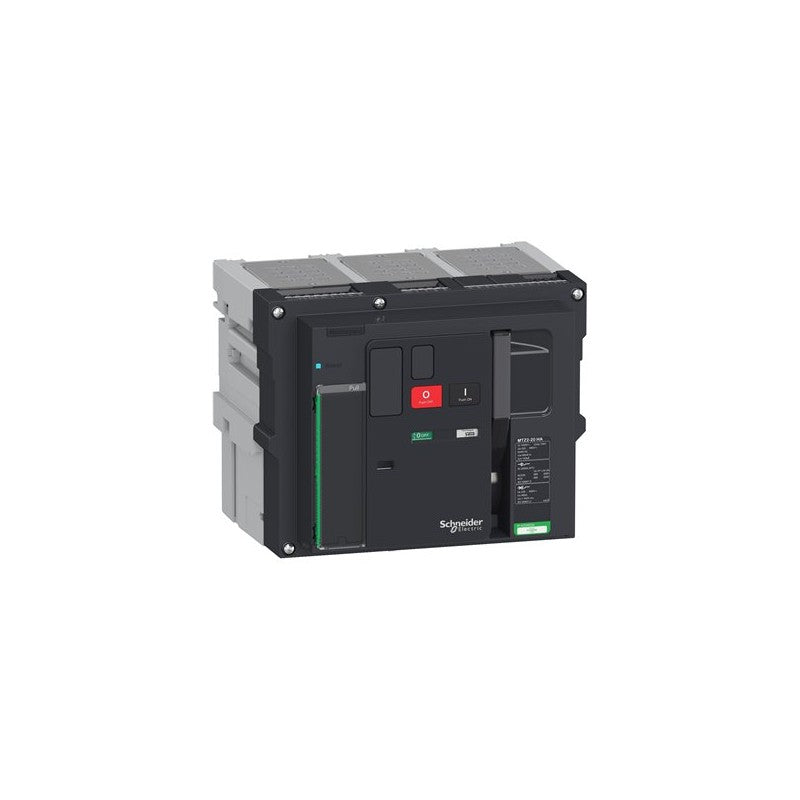

The Schneider Electric Masterpact MTZ2 20 HA is a 3-pole drawout switch disconnector designed for high-capacity power distribution and isolation applications. This unit is part of the advanced Masterpact MTZ series, engineered for robust performance in demanding industrial environments. Its drawout design facilitates safe and efficient maintenance by allowing the breaker to be withdrawn from its fixed connection without disturbing the wiring.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 20 HA
• Configuration: 3-pole
• Type: Switch Disconnector
• Mounting Style: Drawout
• Rated Current: 2000 A
• Interrupting Rating: Not specified in provided information; consult manufacturer datasheet for details.
• Voltage Rating: Not specified in provided information; consult manufacturer datasheet for details.

Applications & compatibility

This switch disconnector is suitable for main incomers, feeder circuits, and busbar tie applications in medium-voltage switchgear. It is commonly found in power distribution systems for large industrial facilities, data centers, and critical infrastructure where reliable isolation and protection are paramount. Compatibility with specific switchgear assemblies should be verified against Schneider Electric documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848291 or contact our technical team for cross-reference assistance with compatible Masterpact MTZ components.
