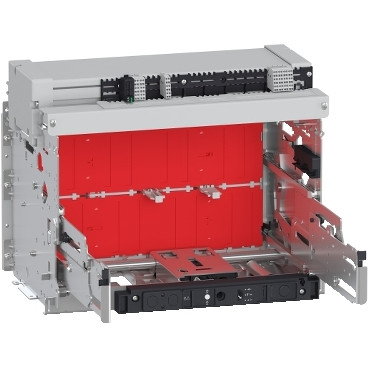

The Schneider Electric LV848406 is a circuit breaker frame designed for robust industrial applications. This component is part of the MTZ2 series, indicating its suitability for medium-voltage switchgear and power distribution systems. The frame's specifications suggest a configuration for specific current and voltage ratings, essential for protecting electrical circuits from overloads and short circuits.

Technical details

• Series: MTZ2
• Frame Type: MTZ2 Frame
• Configuration: 4-Pole
• Rated Current (Amperes): 20/25 A (indicated by 20/25 H3)
• Trip Unit Designation: H3 (likely refers to a specific thermal-magnetic trip unit rating)
• Auxiliary Contact Rating: H1/H2/HA (indicates specific auxiliary contact configurations or ratings)
• Frame Size: 25 (likely refers to a physical frame size or interrupting capacity class)

Applications & compatibility

This Schneider Electric MTZ2 frame is commonly utilized in medium-voltage switchgear assemblies for power distribution in industrial facilities, substations, and large commercial buildings. It is designed to house specific trip units and accessories, ensuring compatibility with a range of protection schemes for motor control centers, feeder circuits, and transformer protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848406 or contact our technical team for cross-reference assistance with compatible MTZ2 series components.
