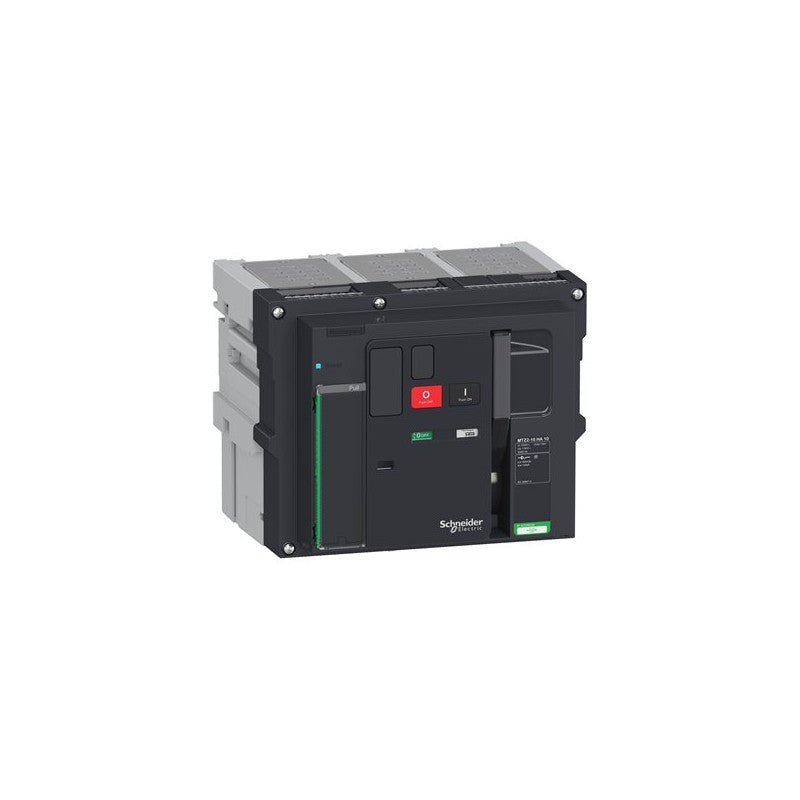

The Schneider Electric Masterpact MTZ2 16 HA10 is a 3-pole switch disconnector designed for high-capacity power distribution applications. This drawout unit is rated for 1000 VAC and 1600 Amperes, making it suitable for demanding industrial environments requiring robust circuit isolation and protection. Its drawout capability facilitates maintenance and replacement without requiring complete system shutdown.

Technical details

• Series: Masterpact MTZ2
• Type: Switch Disconnector
• Configuration: 3-pole
• Voltage Rating: 1000 VAC
• Current Rating: 1600 A
• Mounting Style: Drawout
• HA10 Designation: Indicates specific internal configuration and accessories; consult manufacturer datasheet for full details.
• Interrupting Capacity: Verify against manufacturer datasheet for specific rating.

Applications & compatibility

This switch disconnector is commonly employed in main distribution switchboards, large motor control centers, and critical power systems within heavy industries such as manufacturing plants, data centers, and utility substations. Its design ensures reliable isolation for equipment like large transformers, generators, and main feeders.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848748 or contact our technical team for cross-reference assistance with compatible Masterpact components.
