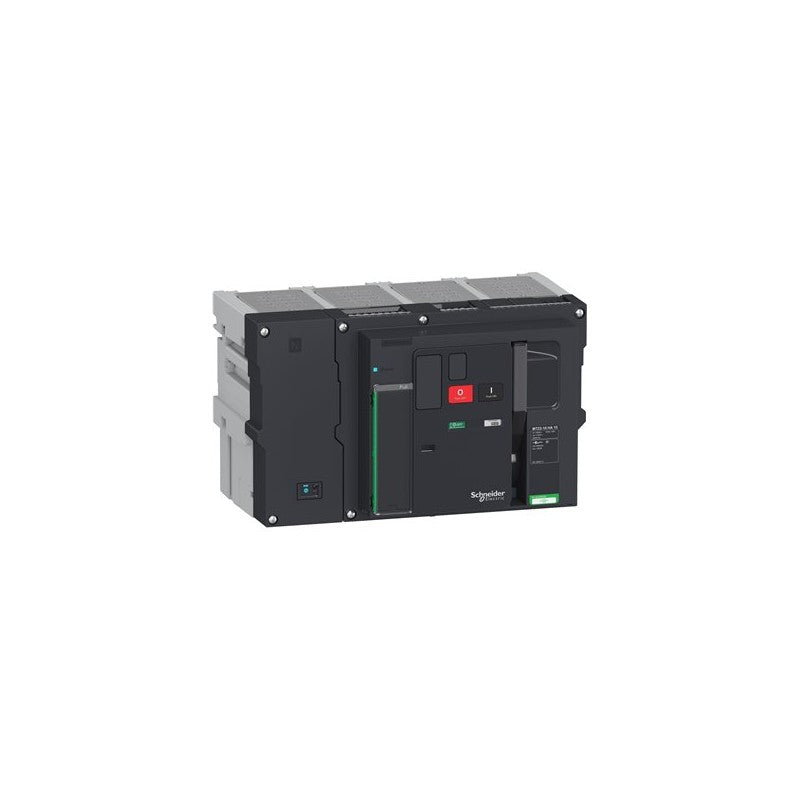

The Schneider Electric Masterpact MTZ2 16 HA10 is a high-capacity switch disconnector designed for robust power distribution applications. This 4-pole unit operates at a nominal voltage of 1000 VAC and is rated for 1600 Amperes, making it suitable for demanding industrial environments. Its drawout configuration facilitates safe and efficient maintenance procedures within electrical switchgear assemblies.

Technical details

• Series: Masterpact MTZ2
• Model Designation: MTZ2 16 HA10
• Voltage Rating: 1000 VAC
• Current Rating: 1600 A
• Number of Poles: 4
• Configuration: Drawout
• Interrupting Capacity: Not specified in provided information; consult manufacturer datasheet for details.
• Terminal Type: Not specified in provided information; consult manufacturer datasheet for details.

Applications & compatibility

This switch disconnector is commonly employed in large-scale industrial power distribution systems, including substations, manufacturing plants, and data centers. It is designed for integration into main distribution switchboards and motor control centers, providing reliable isolation and switching capabilities for critical loads.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV848758 or contact our technical team for cross-reference assistance with compatible Masterpact components.
