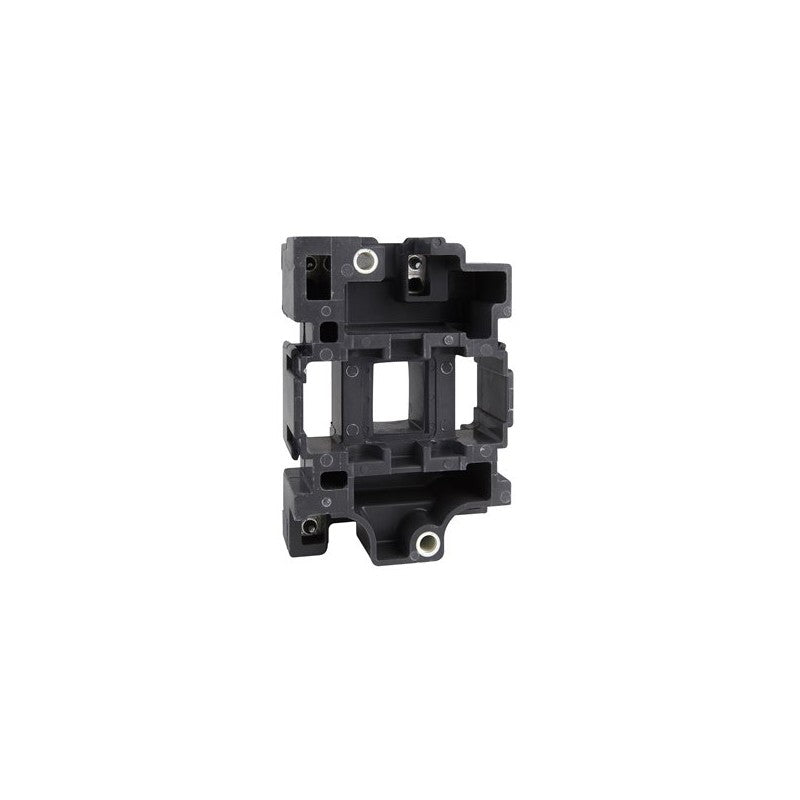

Designed for control and power distribution in industrial settings, the Schneider Electric TeSys D contactor coil (LX1D6) operates on a 48V AC 50Hz power supply. This coil is specifically engineered for use with 80A and 95A TeSys D series contactors, providing the necessary electromagnetic actuation for switching motor loads and other power circuits. Its inclusion within the TeSys D family signifies a commitment to robust and reliable motor control solutions.

Technical details

• Series: TeSys D
• Coil Voltage: 48V AC
• Coil Frequency: 50 Hz
• Compatible Contactor Ratings: 80 A, 95 A
• Function: Contactor coil for electromagnetic actuation
• Control Circuit Voltage: 48V AC
• Manufacturer Series Designation: LX1D6

Applications & compatibility

This LX1D6 contactor coil is integral to motor control circuits within various industrial automation systems. It is commonly found in applications such as conveyor systems, pump controls, HVAC systems, and machine tool applications where reliable switching of medium to heavy loads is required. Its compatibility is strictly limited to Schneider Electric TeSys D contactors rated for 80A and 95A.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1D6E5 or contact our technical team for cross-reference assistance with compatible TeSys D components.
