LX1D8B5 Schneider Electric

Name: LX1D8B5 Schneider Electric
Brand: Schneider Electric

OEM surplus verifiedShips worldwide

The Schneider Electric TeSys D LX1D8B5 is a contactor coil designed for use with 115 A contactors. This coil operates at 24 V AC and a frequency of 50 Hz, providing the necessary electromagnetic force to engage the contactor's main contacts. It is a critical component for cont...

Lead time

24h

Typical quote turnaround on in-stock items

Warranty

24 months

Coverage on eligible surplus and refurbished inventory

Inventory network

5M+

Parts across brands, PLCs, drives, sensors and motors

Request pricing for stock confirmation, condition and freight options

Trusted seller

Get a fast quote

Need help matching part numbers?

Talk to a specialist

Description

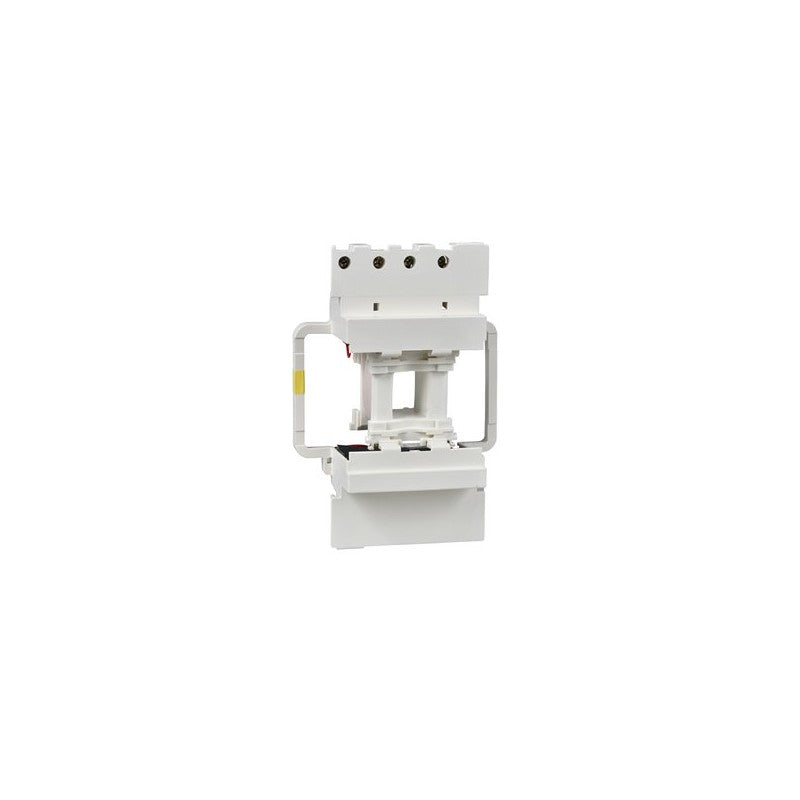

The Schneider Electric TeSys D LX1D8B5 is a contactor coil designed for use with 115 A contactors. This coil operates at 24 V AC and a frequency of 50 Hz, providing the necessary electromagnetic force to engage the contactor's main contacts. It is a critical component for controlling power circuits in various industrial automation systems.

Technical details

Series: TeSys D
Coil Voltage: 24 V AC
Coil Frequency: 50 Hz
Compatible Contactor Rating: 115 A
Control Circuit Type: AC Coil
Mounting Type: Plug-in
Insulation Voltage: Verified against manufacturer datasheet
Operating Temperature Range: Verified against manufacturer datasheet

Applications & compatibility

This LX1D8B5 coil is integral to the operation of TeSys D contactors, commonly found in motor control applications, power distribution panels, and control systems for machinery. It is suitable for use in environments such as manufacturing plants, material handling systems, and HVAC control units where reliable switching of electrical loads is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1D8B5 or contact our technical team for cross-reference assistance with compatible TeSys D components.
