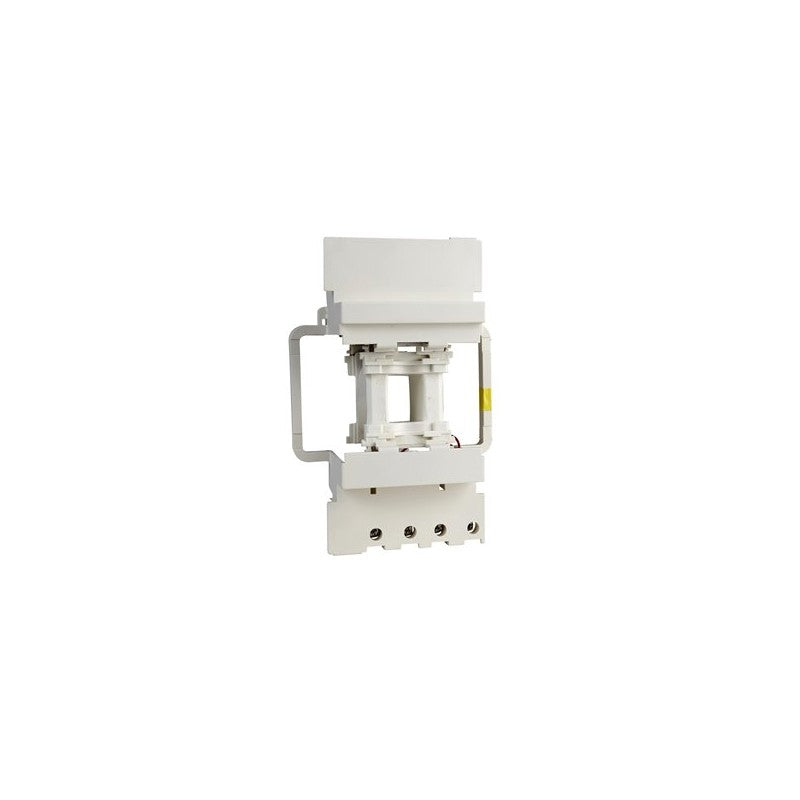

The Schneider Electric LX1D8B7 is a TeSys D series contactor coil designed for AC control circuits. This coil operates at 24V AC with a frequency of 50/60 Hz, making it suitable for integration into various industrial control panels and machinery. It is specifically engineered for use with 115A and 150A TeSys D contactors, ensuring precise and reliable switching operations within these larger frame contactor assemblies.

Technical details

• Series: TeSys D
• Coil Voltage: 24V AC
• Frequency: 50/60 Hz
• Compatible Contactor Amperage: 115A, 150A
• Control Circuit Type: AC
• Mounting Type: Plug-in
• Terminal Type: Screw terminals
• Insulation Voltage: 600V

Applications & compatibility

This LX1D8B7 contactor coil is commonly employed in motor control applications requiring robust and dependable switching for higher current loads. It is frequently found in heavy-duty industrial machinery, including large pump systems, industrial fans, HVAC systems, and material handling equipment where precise control of 115A or 150A contactors is essential for safe and efficient operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1D8B7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
