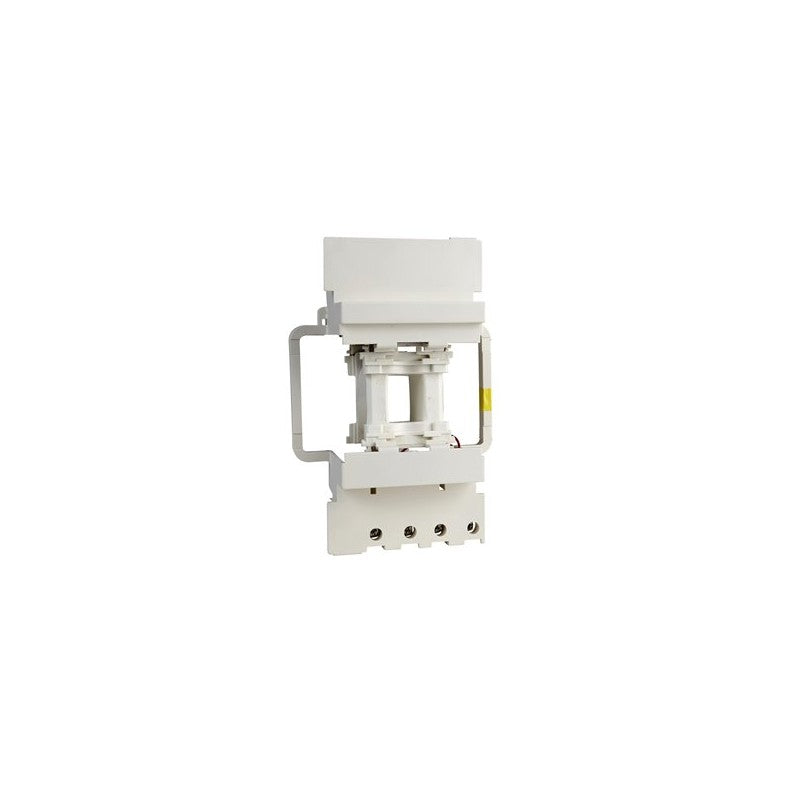

The Schneider Electric TeSys D LX1D8F7 is a contactor coil designed for AC control circuits. This coil operates at 110V AC and is rated for 50/60 Hz frequency, making it suitable for use with 115A and 150A TeSys D series contactors. It serves as a critical component for the electromagnetic actuation of these contactors, enabling remote switching of power circuits in various industrial applications.

Technical details

• Series: TeSys D
• Coil Voltage: 110 V AC
• Frequency: 50/60 Hz
• Compatible Contactor Amperage: 115 A, 150 A
• Coil Type: LX1D8
• Control Circuit Function: Electromagnetic Actuation
• Mounting Type: Integrated into TeSys D contactor body

Applications & compatibility

This LX1D8F7 contactor coil is specifically engineered for integration with Schneider Electric TeSys D series contactors. It is commonly found in motor control applications, power distribution systems, and automation panels within industries such as manufacturing, material handling, and building automation. Its compatibility with 115A and 150A contactors ensures reliable operation in medium to heavy-duty switching tasks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LX1D8F7 coil or contact our technical team for cross-reference assistance with compatible TeSys D components.
