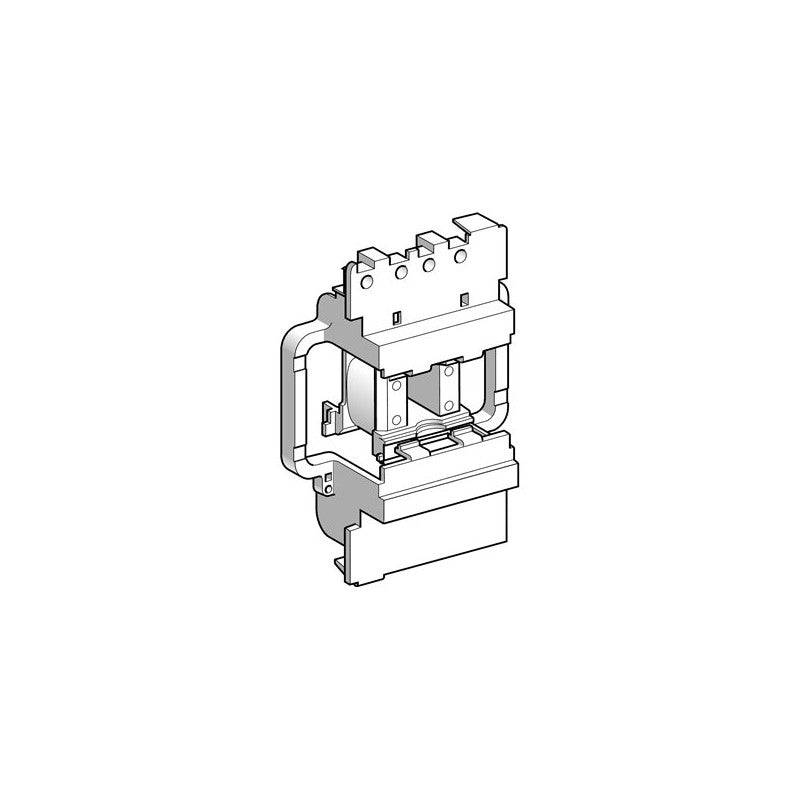

The Schneider Electric LX1D8Q7 is a TeSys D series contactor coil designed for 380V AC operation at 50/60 Hz. This coil is engineered to control contactors rated for 115A and 150A, providing reliable switching capabilities for demanding industrial environments. It is a critical component for motor control and power switching applications within automated systems.

Technical details

• Series: TeSys D
• Coil Voltage: 380 V AC
• Frequency: 50/60 Hz
• Compatible Contactor Ratings: 115 A and 150 A
• Type: Contactor Coil
• Function: Enables electromagnetic actuation of the contactor
• Control Power: Specific power consumption should be verified against the manufacturer's datasheet for precise application sizing.

Applications & compatibility

This LX1D8Q7 coil is integral to motor control circuits in various industrial automation applications. It is commonly found in systems requiring robust switching for medium to heavy-duty loads, such as those in manufacturing plants, material handling equipment, and process control systems. Ensure compatibility with your specific TeSys D contactor frame size.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1D8Q7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
