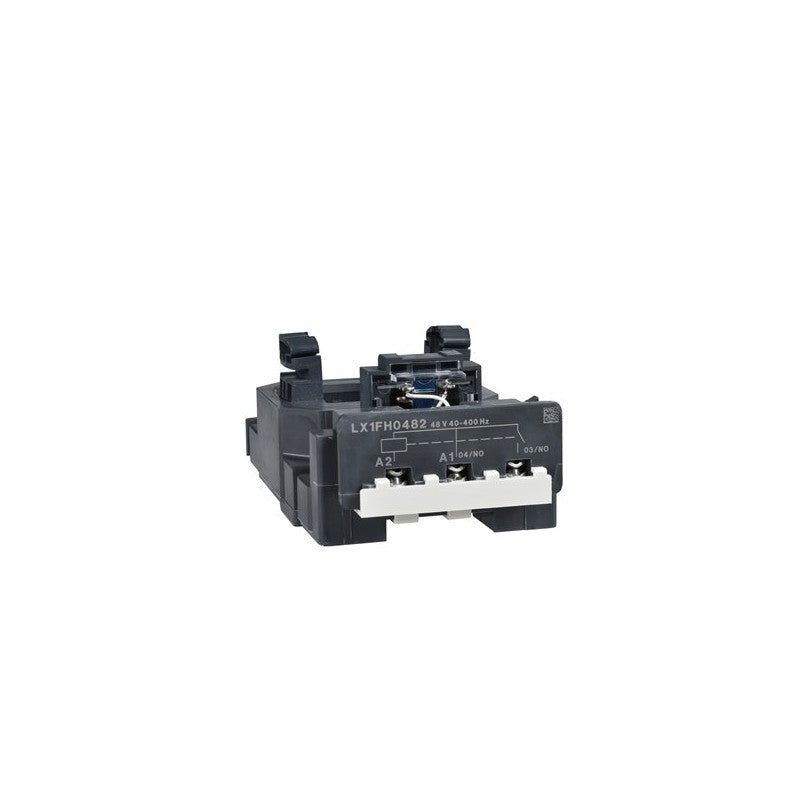

The Schneider Electric LX1FH0482 is a TeSys F series contactor coil designed for AC control circuits. This coil operates at a nominal voltage of 48V AC and is compatible with frequencies ranging from 40 to 400 Hz. It is a critical component for the reliable switching of industrial loads within motor control and power distribution systems.

Technical details

• Series: TeSys F
• Coil Voltage: 48V AC
• Frequency Range: 40 - 400 Hz
• Control Circuit Type: AC
• Mounting Type: Designed for integration into TeSys F contactors
• Functionality: Energizes the contactor coil to close the main power contacts
• Environmental Rating: Refer to the Schneider Electric TeSys F datasheet for specific environmental and operating conditions.

Applications & compatibility

This LX1FH0482 contactor coil is engineered for use with Schneider Electric TeSys F series contactors, commonly found in heavy-duty motor control applications. It is suitable for integration into control panels for machinery in sectors such as material handling, HVAC systems, and industrial processing equipment where robust and reliable switching is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1FH0482 or contact our technical team for cross-reference assistance with compatible TeSys F components.
