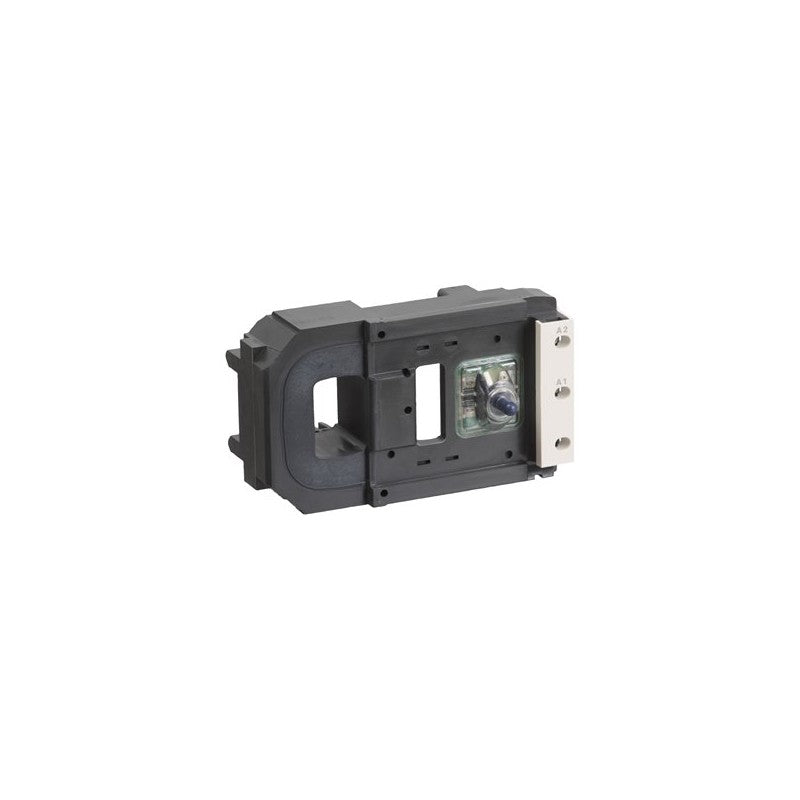

The Schneider Electric LX1FJ500 is a TeSys F series contactor coil designed for AC control circuits. This coil operates at 500 V AC and is engineered to function within a frequency range of 40 to 400 Hz, making it suitable for a variety of industrial power distribution and motor control applications. Its robust construction ensures reliable performance in demanding environments.

Technical details

• Series: TeSys F
• Product Type: Contactor Coil
• Control Voltage: 500 V AC
• Frequency Range: 40...400 Hz
• Coil Type: LX1FJ
• Application: Designed for use with TeSys F contactors to provide the necessary magnetic field for switching operations.
• Mounting: Typically designed for direct integration into compatible TeSys F contactor frames.
• Insulation Class: Refer to manufacturer datasheet for specific insulation ratings.

Applications & compatibility

This LX1FJ500 contactor coil is commonly employed in industrial motor control systems, power distribution panels, and automation equipment. It is compatible with Schneider Electric's TeSys F contactor range, facilitating the control of medium to high-power electrical loads in sectors such as manufacturing, material handling, and process industries.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1FJ500 or contact our technical team for cross-reference assistance with compatible TeSys F components.
