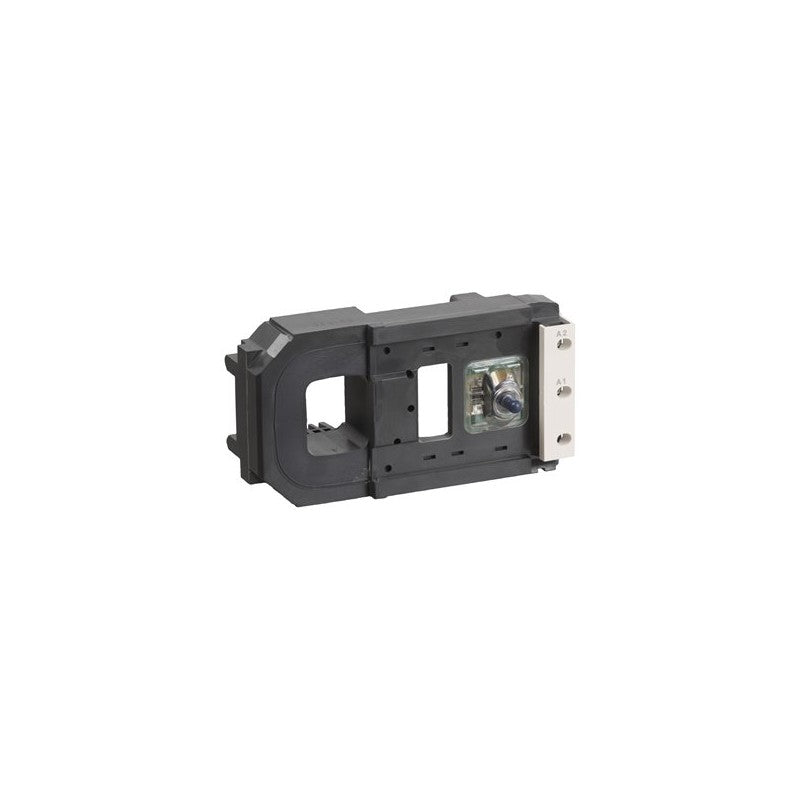

The Schneider Electric TeSys F contactor coil, model LX1FK, is engineered for reliable operation in demanding industrial environments. This coil is designed to control the switching of TeSys F series contactors, commonly integrated into motor control circuits and power distribution systems. Its specific voltage and frequency ratings ensure compatibility with standard AC power grids.

Technical details

• Series: TeSys F
• Coil Type: Contactor Coil
• Control Voltage: 220...230 V AC
• Frequency: 40...400 Hz
• Function: Activates the magnetic field to close the main contacts of a compatible TeSys F contactor.
• Compatibility: Designed for use with Schneider Electric TeSys F series contactors. Specific contactor model compatibility should be verified against manufacturer documentation.
• Operating Temperature Range: Refer to the manufacturer's datasheet for precise operating temperature specifications.
• Mounting: Typically designed for plug-in installation into the designated coil cavity of a TeSys F contactor.

Applications & compatibility

This LX1FK contactor coil is integral to motor control applications within various industrial sectors, including manufacturing plants, material handling systems, and HVAC systems. It is essential for applications requiring the reliable switching of medium-voltage AC motors and power circuits where precise control is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1FK220 or contact our technical team for cross-reference assistance with compatible TeSys F components.
