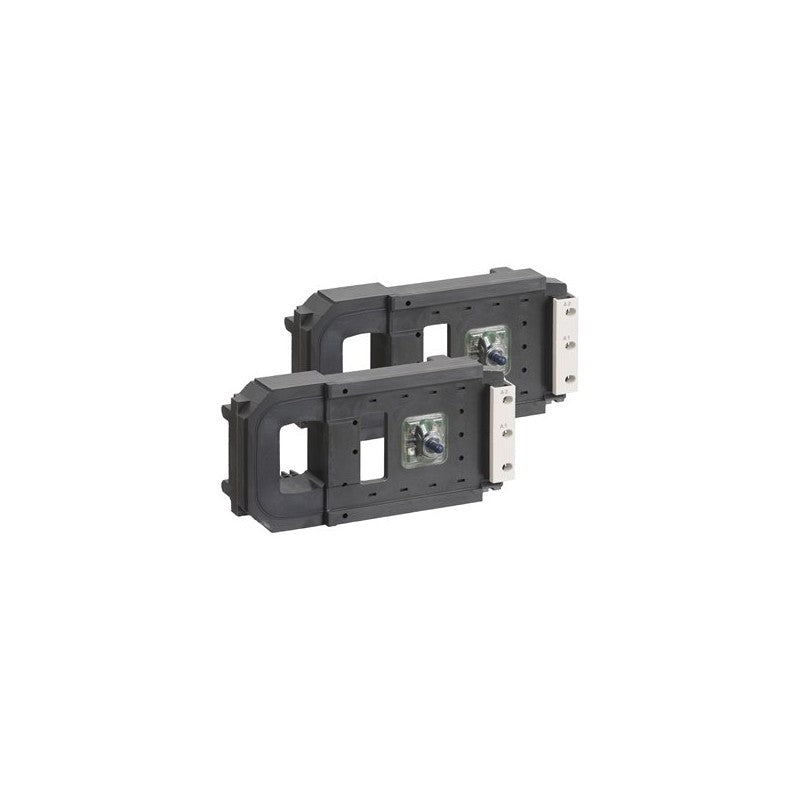

The Schneider Electric TeSys F contactor coil, model LX1FX380, is designed for AC control circuits operating within a 380 to 400 VAC range at frequencies from 40 to 400 Hz. This coil is a critical component for the reliable operation of TeSys F series contactors, commonly integrated into motor control and power switching applications within industrial environments.

Technical details

• Series: TeSys F
• Coil Type: LX1FX
• Control Voltage: 380...400 V AC
• Frequency: 40...400 Hz
• Function: Contactor Coil
• Compatibility: Designed for use with Schneider Electric TeSys F series contactors. Specific contactor model compatibility should be verified against the TeSys F catalog or manufacturer datasheet.
• Operating Temperature: Refer to the manufacturer's datasheet for precise operating temperature range.
• Mounting: Typically designed for direct integration into compatible TeSys F contactor frames.

Applications & compatibility

This LX1FX380 coil is essential for controlling large industrial motors and power circuits in applications such as material handling systems, HVAC systems, pump controls, and machine tool applications. Its compatibility is specifically with the Schneider Electric TeSys F contactor range, ensuring precise and reliable switching operations in demanding industrial settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX1FX380 or contact our technical team for cross-reference assistance with compatible TeSys F components.
