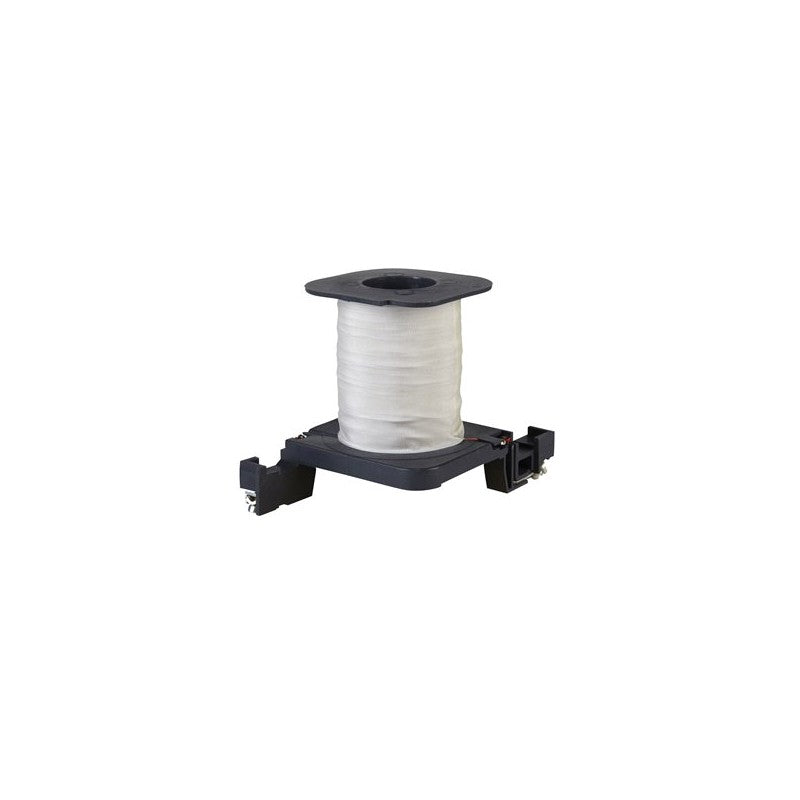

The Schneider Electric TeSys D LX4D6JD is a contactor coil designed for DC control circuits. This component is integral to the operation of TeSys D series contactors, providing the necessary electromagnetic force to engage and disengage the main power contacts. It is commonly found in motor control applications and power distribution systems requiring reliable switching under DC voltage conditions.

Technical details

• Series: TeSys D
• Coil Type: Contactor Coil
• Control Voltage: 12 V DC
• Functionality: Engages and disengages contactor main poles
• Compatibility: Designed for use with Schneider Electric TeSys D series contactors. Specific contactor model compatibility should be verified against manufacturer datasheets.
• Operating Temperature Range: Refer to manufacturer datasheet for specific environmental operating conditions.
• Insulation Voltage: Refer to manufacturer datasheet for specific dielectric strength ratings.

Applications & compatibility

This 12 V DC coil is suitable for integration into control panels for various industrial machinery, including automated assembly lines, material handling systems, and process control equipment. Its DC voltage rating makes it ideal for applications powered by DC sources or where DC control logic is employed, ensuring precise and dependable operation of associated contactors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4D6JD or contact our technical team for cross-reference assistance with compatible TeSys D components.
